CDCLVD1213RGTR - Texas Instruments

Description: 1:4 Low Additive Jitter LVDS Buffer With Divider

Download CDCLVD1213RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

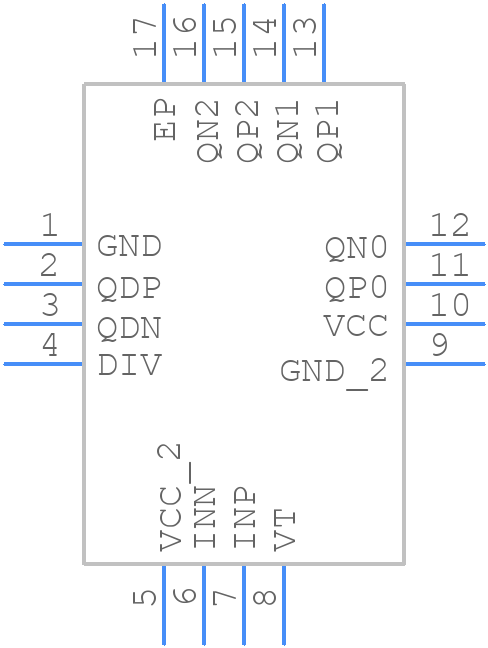

Symbol
CDCLVD1213RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCLVD1213RGTR - Texas Instruments PCB footprint - Other - Other - QFN50P300X300X100-17N
click to zoom
3D Models
CDCLVD1213RGTR - Texas Instruments - 3D model - Other - QFN50P300X300X100-17N
click to zoom

CDCLVD1213RGTR Details

  • Manufacturer Part Number:

    CDCLVD1213RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    85 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.06 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    800 MHz

CDCLVD1213RGTR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal vias to reduce noise and jitter. It's also recommended to keep the input and output traces separate and to use a common mode filter to reduce EMI.
  • The CDCLVD1213RGTR requires a 50-ohm termination resistor to prevent signal reflections. The resistor should be placed as close to the output pin as possible, and the trace length should be minimized to reduce signal degradation.
  • The maximum frequency deviation for the CDCLVD1213RGTR is ±100 ppm. A higher frequency deviation can cause the output signal to deviate from the expected frequency, leading to errors in the system. It's essential to ensure the input clock signal is within the specified frequency deviation to maintain a stable output signal.
  • The CDCLVD1213RGTR has a built-in jitter filter that helps to reduce input clock signal jitter. However, excessive jitter can still affect the output signal, causing it to deviate from the expected frequency or amplitude. It's essential to ensure the input clock signal has minimal jitter to maintain a stable output signal.
  • Texas Instruments recommends using a 10-uF capacitor in parallel with a 100-nF capacitor as close to the power pins as possible to decouple the power supply. This helps to minimize noise and voltage droop, ensuring a stable output signal.
