CDCLVD1216RGZT - Texas Instruments

Description: Low Jitter, 2-Input Selectable 1:16 Universal-to-LVDS Buffer

Download CDCLVD1216RGZT Model

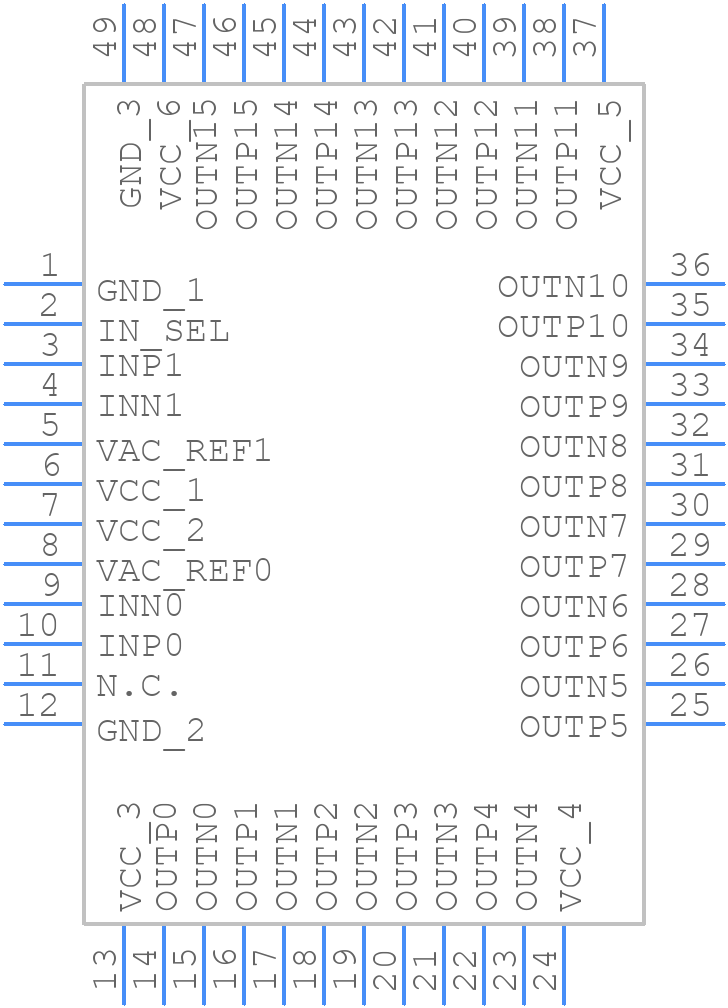

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCLVD1216RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
CDCLVD1216RGZT - Texas Instruments  - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

CDCLVD1216RGZT Details

  • Manufacturer Part Number:

    CDCLVD1216RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    180 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    800 MHz

CDCLVD1216RGZT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCLVD1216RGZT involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output termination for the CDCLVD1216RGZT depends on the specific application and the load being driven. For a point-to-point connection, a series termination of 50-75 ohms is recommended. For a bus topology, a parallel termination of 50-75 ohms is recommended. It's also important to consider the capacitive load and adjust the termination accordingly.
  • The CDCLVD1216RGZT can support clock frequencies up to 200 MHz. However, the maximum frequency may vary depending on the specific application, PCB layout, and output load. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
  • To ensure proper power and decoupling, it's recommended to use a low-ESR capacitor (e.g. 0.1uF) placed close to the device, and a larger capacitor (e.g. 10uF) placed near the power source. Additionally, it's important to ensure that the power supply is stable and can provide the required current.
  • The recommended input clock signal for the CDCLVD1216RGZT is a differential clock signal with a swing of 200-400 mV and a common-mode voltage of 1.2V-1.8V. The clock signal should also have a rise and fall time of less than 1ns.
