CDCLVD2104RHDT - Texas Instruments

Description: Texas Instruments CDCLVD2104RHDT, LVDS Buffer 2 LVCMOS/ LVDS/ LVPECL, 2.375 → 2.625 V, 16-Pin, QFN

Download CDCLVD2104RHDT Model
Schematic

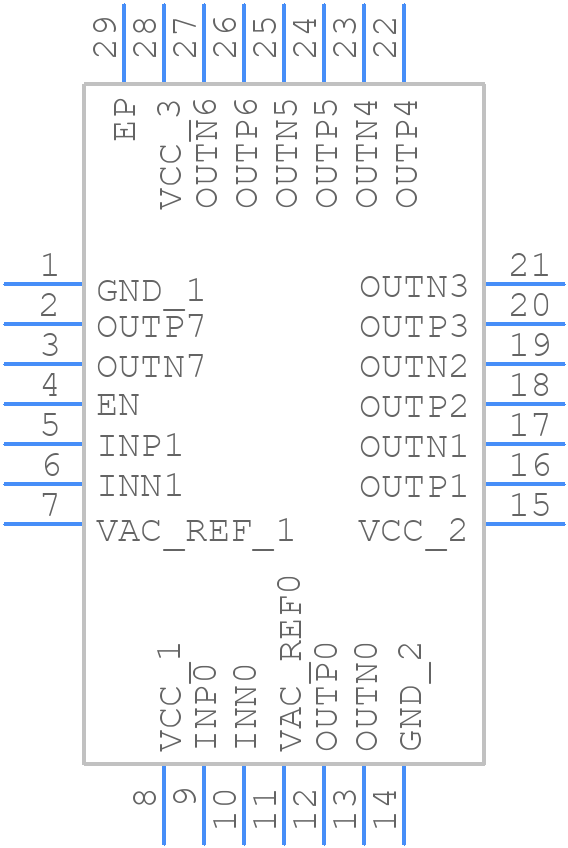

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCLVD2104RHDT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom
3D Models
CDCLVD2104RHDT - Texas Instruments  - 3D model - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom

CDCLVD2104RHDT Details

  • Manufacturer Part Number:

    CDCLVD2104RHDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    144 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    800 MHz

CDCLVD2104RHDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCLVD2104RHDT involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of output termination for the CDCLVD2104RHDT depends on the specific application requirements. For example, if you need to drive a capacitive load, a series termination resistor may be necessary. If you're driving a transmission line, a parallel termination resistor may be more suitable. Consult the application notes and TI's documentation for more guidance.
  • The maximum operating frequency of the CDCLVD2104RHDT is 2.1 GHz. As the frequency increases, the device's power consumption also increases. However, the device is designed to operate at high frequencies while maintaining low power consumption. Consult the datasheet for specific power consumption values at different frequencies.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Make sure to provide a stable voltage supply, and use a voltage regulator if necessary. Additionally, ensure that the input signals are within the recommended voltage range to prevent damage to the device.
  • The CDCLVD2104RHDT has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Consult the thermal design guidelines in the datasheet for more information.
