LVECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.8V; ALSO OPERATES AT 3.3 V SUPPLY
Family:
110
Input Conditioning:
DIFFERENTIAL MUX
JESD-30 Code:
S-PQFP-G32
JESD-609 Code:
e4
Length:
7 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Max I(ol):
0.005 A
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
32
Number of True Outputs:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LQFP
Package Equivalence Code:
QFP32,.35SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE
Packing Method:
TRAY
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
380 mA
Prop. Delay@Nom-Sup:
0.37 ns
Propagation Delay (tpd):
0.37 ns
Qualification Status:
Not Qualified
Same Edge Skew-Max (tskwd):
0.03 ns
Seated Height-Max:
1.6 mm
Supply Voltage-Max (Vsup):
3.8 V
Supply Voltage-Min (Vsup):
2.375 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
fmax-Min:
3500 MHz
CDCLVP110VFG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to prevent signal coupling.
The CDCLVP110VFG4 is a programmable voltage regulator, and the output voltage is set using the VID[5:0] pins. Refer to the datasheet's VID code table to determine the correct pin configuration for your desired output voltage. You can also use Texas Instruments' online VID code calculator tool to simplify the process.
The CDCLVP110VFG4 has an absolute maximum input voltage rating of 6.5V. However, for normal operation, the recommended input voltage range is 3.6V to 5.5V. Exceeding the maximum input voltage can damage the device or affect its performance.
To ensure stability, follow the datasheet's guidelines for output capacitance, equivalent series resistance (ESR), and output voltage ripple. Additionally, use a high-quality output capacitor with a low ESR and ensure that the device is properly decoupled from the input voltage source.
The CDCLVP110VFG4 has a maximum power dissipation limit of 2.5W. To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout. Ensure that your design stays within this limit to prevent overheating and device damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVP110VFG4 Overview

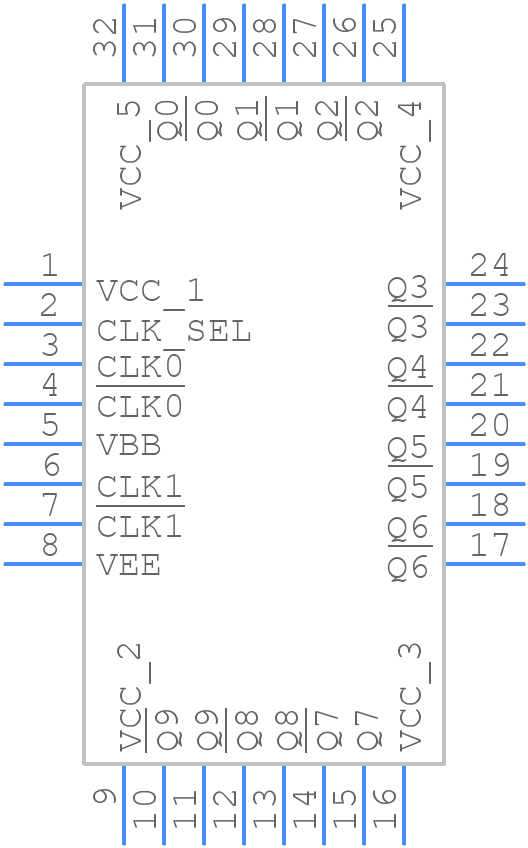

Use the download button to access the CDCLVP110VFG4 schematic symbol, PCB footprint, and 3D model.
