Texas Instruments recommends a low-inductance, low-capacitance PCB layout with short traces, and a solid ground plane to minimize noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
Use a low-ESR capacitor (e.g., 0.1 μF) as close as possible to the VCC pin, and a larger capacitor (e.g., 10 μF) in parallel to filter out noise. Ensure the power supply is stable and can provide the required current. Decouple the input clock signal with a series resistor and capacitor to prevent noise coupling.
The CDCLVP2106RHAR can handle clock frequencies up to 210 MHz, but the maximum frequency may vary depending on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and perform simulations to ensure the device can handle the desired clock frequency.
The CDCLVP2106RHAR has a programmable divider that allows for flexible output frequency configuration. Use the datasheet's frequency calculation formulas and tables to determine the required divider settings for the desired output frequency. You can also use Texas Instruments' Clock Design Tool to simplify the process.
The typical power consumption of the CDCLVP2106RHAR is around 30-40 mA, depending on the output frequency, load capacitance, and operating conditions. However, this value can vary, so it's recommended to consult the datasheet and perform power consumption calculations for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVP2106RHAR Overview

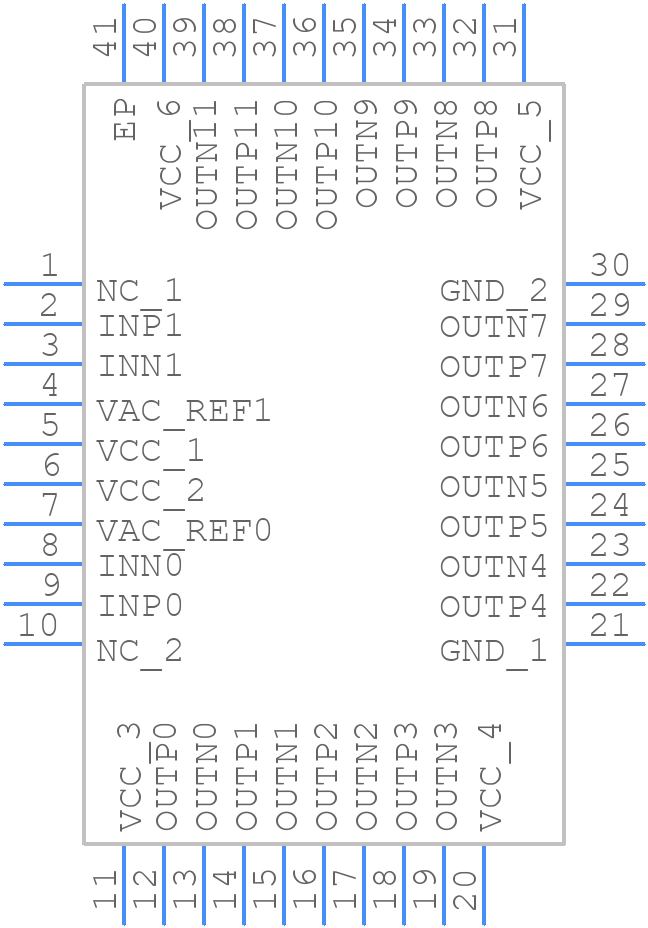

Use the download button to access the CDCLVP2106RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
