Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure signal integrity.
The CDCM1802RGTRG4 requires a 50-ohm output termination to ensure signal integrity. You can use a 50-ohm resistor in series with a capacitor to ground or a 50-ohm resistor to VCC, depending on your application's requirements.
The CDCM1802RGTRG4 can operate up to 1800 MHz, but the maximum clock frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for your specific use case.
To achieve low jitter performance, ensure that the clock input signal is clean and has a low jitter, use a high-quality crystal oscillator, and follow good PCB design practices, such as minimizing noise coupling and using a solid ground plane.
The power consumption of the CDCM1802RGTRG4 depends on the operating frequency, output load, and supply voltage. According to the datasheet, the typical power consumption is around 130 mW at 1800 MHz with a 3.3V supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCM1802RGTRG4 Overview

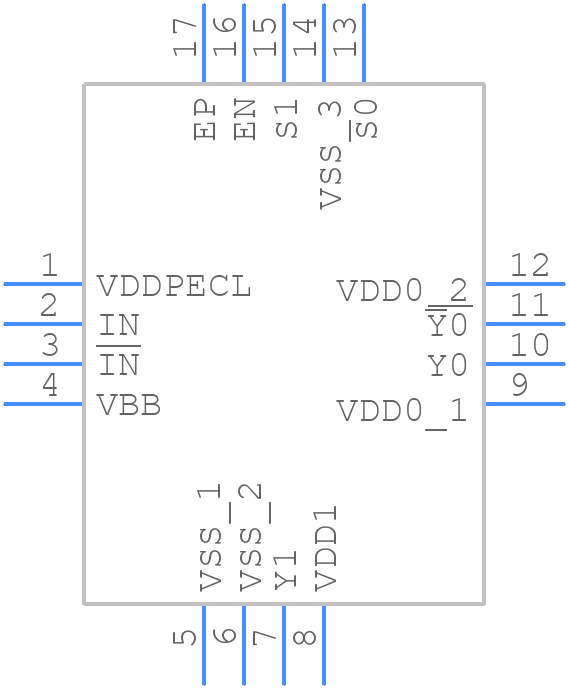

Use the download button to access the CDCM1802RGTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM1,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
