CDCM61001RHBR - Texas Instruments

Description: One Output, Integrated VCO, Low-Jitter Clock Generator

Download CDCM61001RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

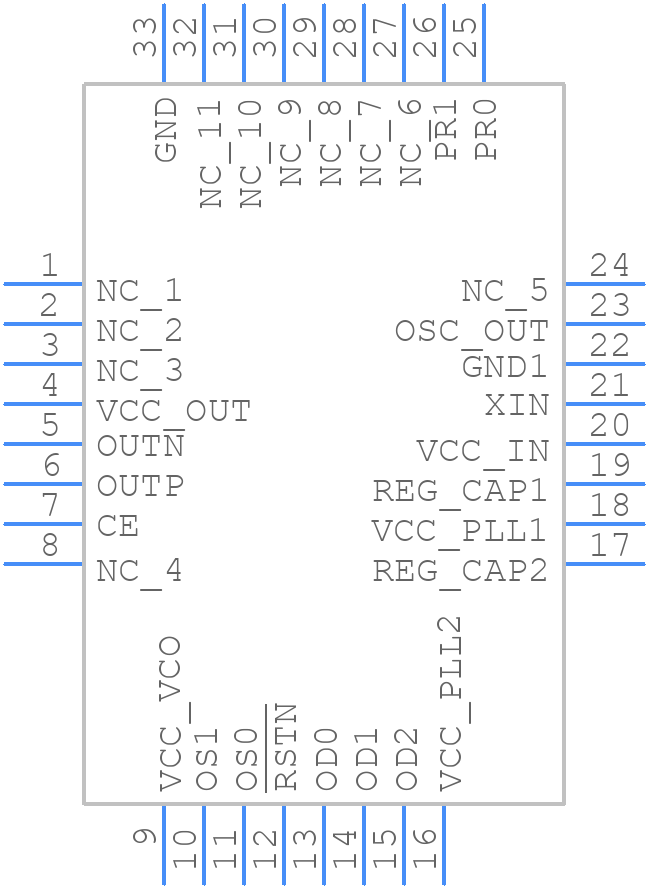

CDCM61001RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM61001RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
CDCM61001RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

CDCM61001RHBR Details

  • Manufacturer Part Number:

    CDCM61001RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    683.28 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    28.47 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    115 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM61001RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the clock input. The clock input should be routed as a differential pair with a 100-ohm impedance. Additionally, the device should be placed close to the clock source to minimize signal degradation.
  • The CDCM61001RHBR requires a 1.8V power supply with a minimum of 100mA current capability. A 1uF decoupling capacitor should be placed close to the device, and a 10uF bulk capacitor should be placed near the power supply. Additionally, the power supply should be noise-free and have a low impedance.
  • The CDCM61001RHBR supports clock frequencies up to 1.5GHz. However, the maximum frequency may vary depending on the specific application and PCB layout. It is recommended to consult the datasheet and application notes for more information.
  • The CDCM61001RHBR has a programmable clock divider that allows the output frequency to be set to a specific value. The divider ratio can be set using the SDATA and SCLK pins. Consult the datasheet and application notes for more information on how to configure the divider ratio for a specific clock frequency.
  • The CDCM61001RHBR has a typical jitter performance of 150fs RMS for a 1.5GHz clock input. However, the actual jitter performance may vary depending on the specific application and PCB layout. It is recommended to consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCM61001RHBR Overview

Use the download button to access the CDCM61001RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6, or try a keyword search, such as Clock Generators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
