Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
Proper power supply decoupling is crucial for the CDCM6208V1FRGZR. Use a low-ESR capacitor (e.g., 0.1 μF) close to the device's power pins, and ensure the power supply is clean and stable. Additionally, follow the recommended power-up sequence to prevent latch-up.
While the datasheet specifies a maximum clock frequency of 2.5 GHz, the actual frequency limit may vary depending on the specific application, PCB layout, and signal quality. It's recommended to consult with Texas Instruments' support team or perform thorough testing to determine the maximum frequency for your specific use case.
The CDCM6208V1FRGZR is a highly configurable device. Refer to the datasheet and application notes for guidance on configuring the device for specific clock frequencies or formats, such as PCIe, SATA, or others. You may also need to use Texas Instruments' Clock Design Tool or consult with their support team for custom configurations.
The CDCM6208V1FRGZR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow proper PCB design practices to minimize thermal resistance. Monitor the device's temperature and adjust the thermal design as needed to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCM6208V1FRGZR Overview

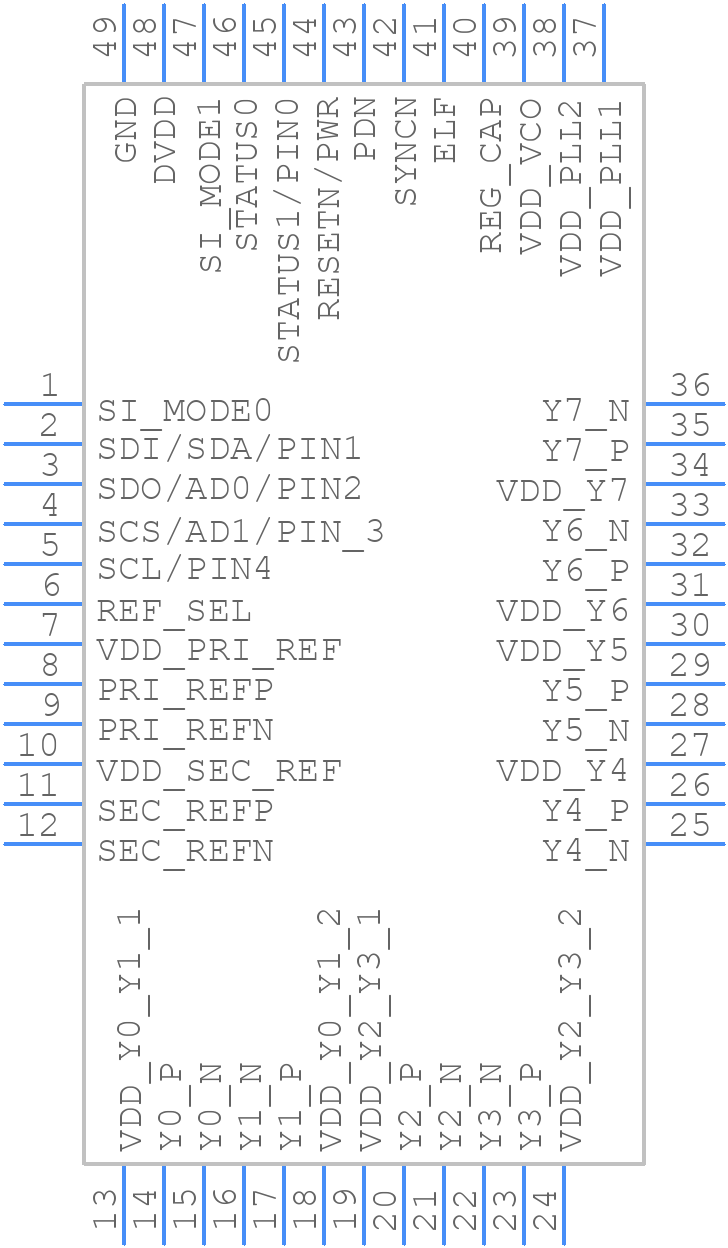

Use the download button to access the CDCM6208V1FRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6,
or try a keyword search, such as Clock Generators
