A good PCB layout for the CDCM6208V1RGZT involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the analog and digital grounds separate.
The CDCM6208V1RGZT can be configured for a specific clock frequency by selecting the appropriate values for the RSET and CIN pins. The datasheet provides a formula to calculate the required RSET and CIN values based on the desired clock frequency. Additionally, the device can be programmed using the I2C interface to set the clock frequency and other parameters.
The CDCM6208V1RGZT can support clock frequencies up to 1.2 GHz, making it suitable for high-speed applications such as PCIe, SATA, and HDMI.
To ensure proper power and decoupling, it's recommended to use a low-dropout regulator (LDO) to power the CDCM6208V1RGZT, and to place decoupling capacitors (e.g., 0.1 uF and 10 uF) close to the device. Additionally, the power supply should be clean and stable, with minimal noise and ripple.
Yes, the CDCM6208V1RGZT can be used in a redundant clocking system, where multiple clock sources are used to provide redundancy and fault tolerance. The device's I2C interface can be used to switch between different clock sources and to monitor the clock signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCM6208V1RGZT Overview

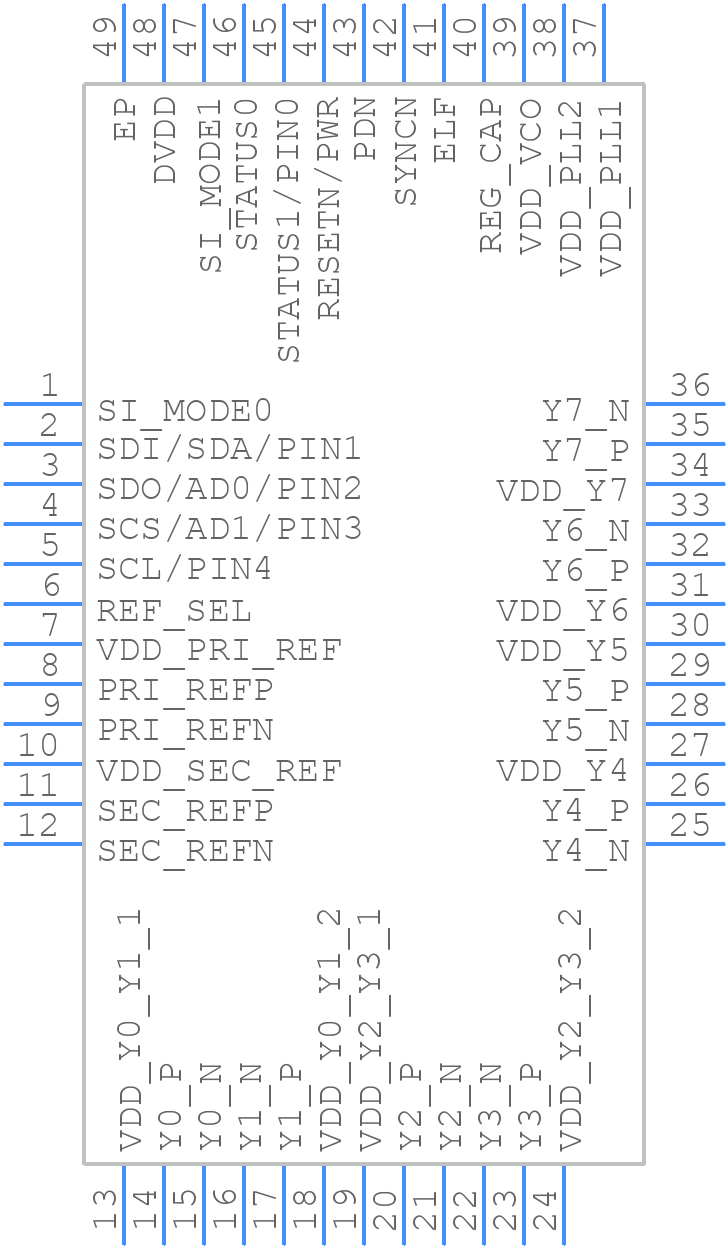

Use the download button to access the CDCM6208V1RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
