Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The CDCM6208V2GRGZR requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise. Additionally, use 0.1uF and 1uF bypass capacitors as close to the power pins as possible to filter out high-frequency noise.
The CDCM6208V2GRGZR can support clock frequencies up to 2.5 GHz, but the actual maximum frequency may depend on the specific application, PCB layout, and signal integrity. It's recommended to consult with Texas Instruments or perform simulations to determine the maximum frequency for a specific design.
The CDCM6208V2GRGZR can be configured using the SPI interface to set the clock frequency, output format, and other parameters. Refer to the datasheet and programming guide for specific register settings and configuration examples.
The typical power consumption of the CDCM6208V2GRGZR is around 150mW, but this can vary depending on the clock frequency, output format, and other factors. Refer to the datasheet for more information on power consumption and thermal characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCM6208V2GRGZR Overview

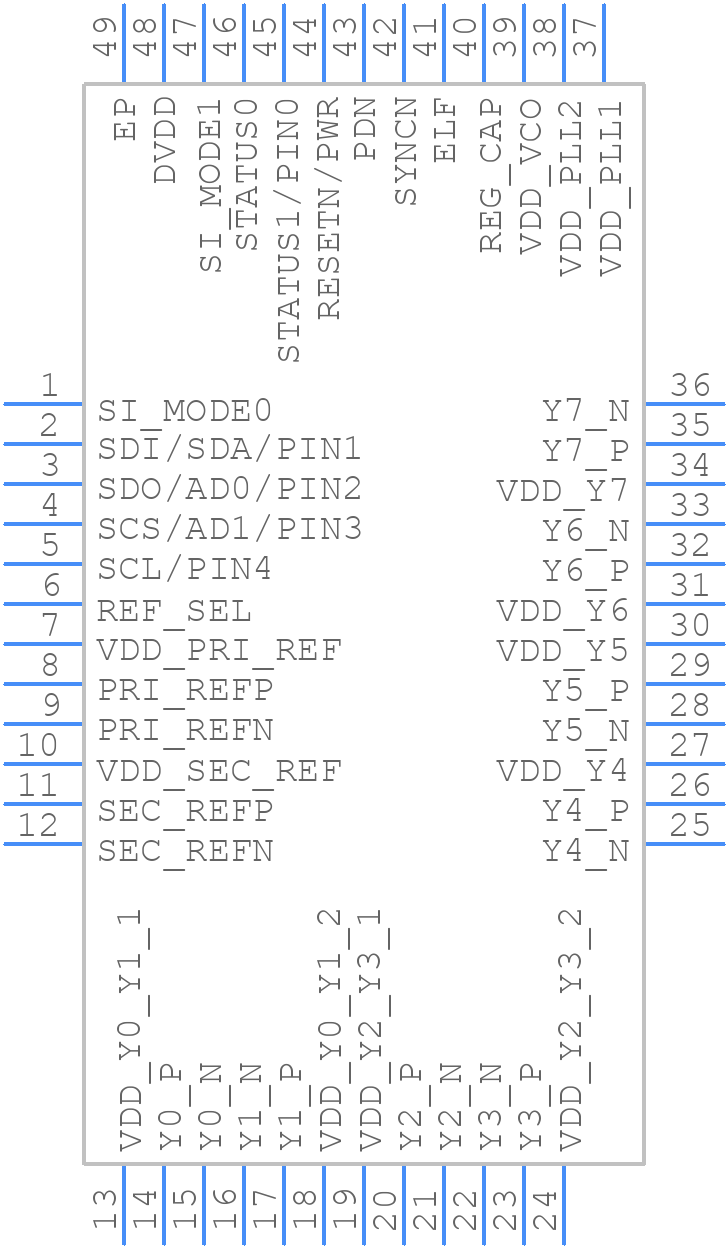

Use the download button to access the CDCM6208V2GRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
