CDCM6208V2RGZR - Texas Instruments

Description: 2:8 Ultra Low Power, Low Jitter Clock Generator

Download CDCM6208V2RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

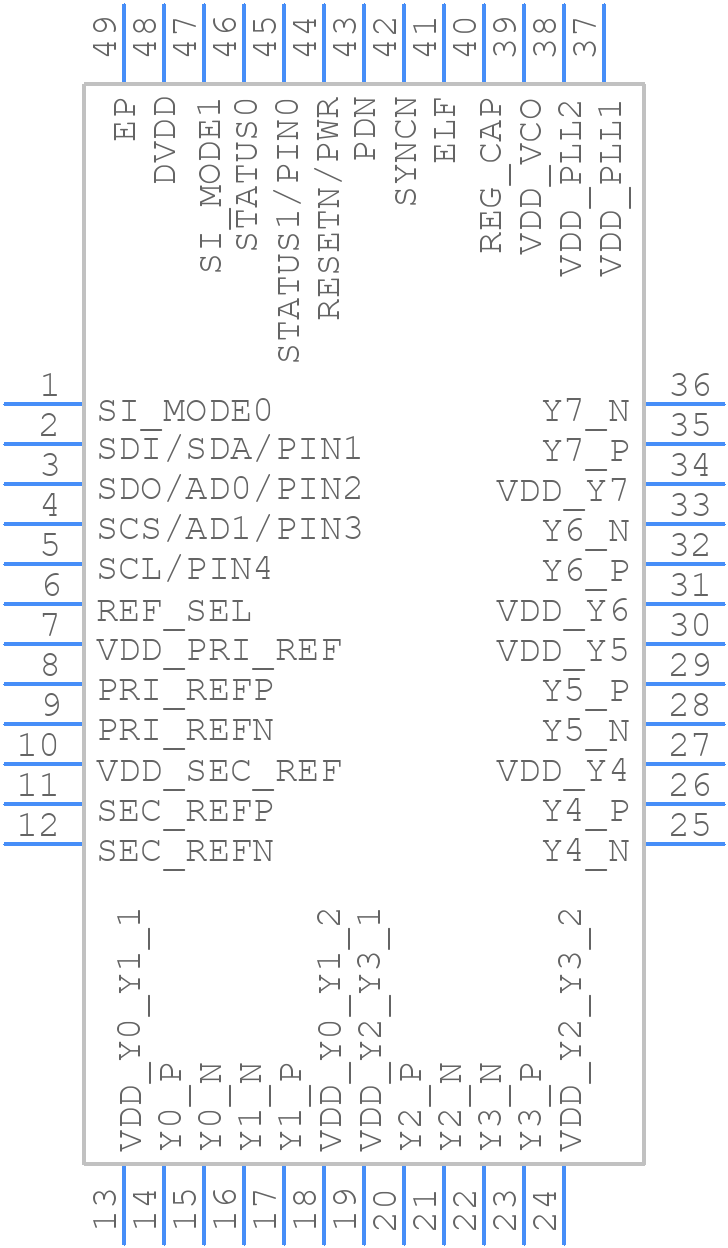

CDCM6208V2RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM6208V2RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B_2021
click to zoom
3D Models
CDCM6208V2RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B_2021
click to zoom

CDCM6208V2RGZR Details

  • Manufacturer Part Number:

    CDCM6208V2RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM6208V2RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
  • The CDCM6208V2RGZR is a highly configurable device. To configure it for a specific clock frequency, refer to the device's programming guide and use the provided software tools to generate the necessary configuration data.
  • The CDCM6208V2RGZR can support clock frequencies up to 1.2 GHz, but the actual maximum frequency depends on the specific application, PCB layout, and environmental conditions.
  • Proper power supply decoupling is crucial for the CDCM6208V2RGZR. Use a low-ESR capacitor (e.g., 0.1 μF) connected between the VCC and GND pins, and ensure the power supply voltage is within the recommended range (1.71 V to 1.89 V).
  • The CDCM6208V2RGZR has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow proper thermal design practices to prevent overheating.
