A good PCB layout for the CDCS502PW involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The CDCS502PW requires a single 1.8V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
The CDCS502PW can support clock frequencies up to 100 MHz. However, the maximum frequency may vary depending on the specific application and the quality of the clock signal.
The CDCS502PW can be configured for different clock modes using the CFG0-2 pins. The device can be configured for crystal oscillator mode, external clock mode, or internal oscillator mode. The trade-offs between these modes include power consumption, accuracy, and flexibility.
When selecting an external crystal oscillator for the CDCS502PW, consider the frequency tolerance, load capacitance, and equivalent series resistance (ESR) of the crystal. A crystal with a frequency tolerance of ±20 ppm and a load capacitance of 10-20 pF is recommended.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CDCS502PW Overview

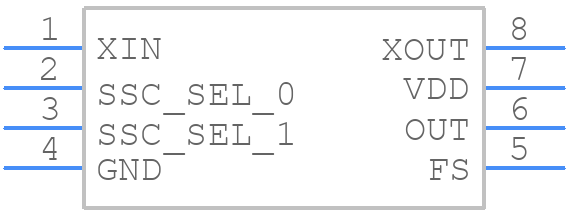

Use the download button to access the CDCS502PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCS5,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
