Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The CDCS503TPWRQ1 requires a 3.3V power supply, and it's essential to ensure the power supply is clean and stable. Additionally, the device requires a bias voltage (VBIAS) to be applied to the VBIAS pin, which should be set to 1.2V to 1.8V for optimal performance.
The CDCS503TPWRQ1 supports clock frequencies up to 100 MHz, but the actual frequency limit may depend on the specific application and PCB design. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for a specific design.
The CDCS503TPWRQ1 has a maximum junction temperature (TJ) of 150°C. To ensure proper thermal management, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to follow good thermal design practices, such as keeping the device away from heat sources and using thermal vias.
The CDCS503TPWRQ1 requires a specific termination scheme to ensure proper signal integrity. The datasheet recommends using a 50Ω termination resistor on the output pins, and it's essential to follow this recommendation to avoid signal reflections and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCS503TPWRQ1 Overview

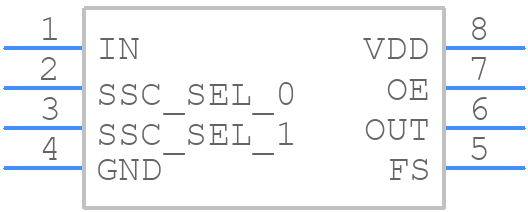

Use the download button to access the CDCS503TPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCS5,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
