CDCVF2310MPWEP - Texas Instruments

Description: Enhanced Product 2.5-V to 3.3-V High Performance Clock Buffer

Download CDCVF2310MPWEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

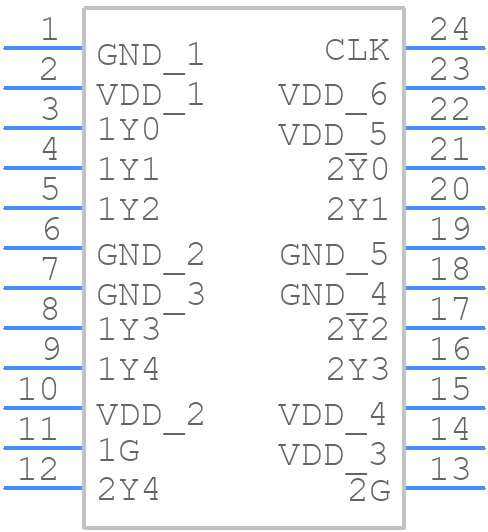

CDCVF2310MPWEP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
CDCVF2310MPWEP - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

CDCVF2310MPWEP Details

  • Manufacturer Part Number:

    CDCVF2310MPWEP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDCV

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.17 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    200 MHz

CDCVF2310MPWEP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input clock signal. This ensures proper device operation and prevents latch-up.
  • To optimize the clock tree design, use a balanced clock tree architecture, minimize clock signal routing distance, and use a clock buffer or repeater to reduce signal degradation. Additionally, consider using a clock distribution network with a low-skew, low-jitter clock source.
  • The maximum frequency of operation for the CDCVF2310 is 231.4 MHz. However, the actual operating frequency may be limited by the specific application, PCB design, and environmental conditions.
  • To handle clock domain crossing, use a synchronizer circuit or a FIFO-based design to transfer data between clock domains. Ensure that the clock domains are properly synchronized, and consider using a clock domain crossing (CDC) circuit or a asynchronous FIFO to handle data transfer.
  • To ensure proper thermal management, provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device. The maximum junction temperature (TJ) is 150°C, and the device should be operated within the recommended operating temperature range of -40°C to 85°C.
