Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal vias to reduce noise and jitter. A 4-layer PCB with a dedicated ground plane and power plane is recommended. Additionally, use a clock tree architecture to minimize clock skew and use series termination resistors to reduce reflections.
To optimize the CDCVF2505D for low power consumption, use the lowest possible clock frequency, disable unused outputs, and use the power-down mode when not in use. Additionally, use a low-power mode for the PLL and reduce the output drive strength.
The CDCVF2505D has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad, and keeping the device away from heat sources. Monitor the device temperature and adjust the thermal design as needed.
Use oscilloscopes and logic analyzers to measure clock jitter and signal integrity. Check the power supply voltage, clock frequency, and output loading. Verify that the device is properly configured and that the input clock signal meets the recommended specifications.
The CDCVF2505D is designed to meet EMI and RFI regulatory requirements. Ensure compliance by using a shielded enclosure, minimizing trace lengths, and using EMI filters. Follow good PCB design practices, such as using a solid ground plane and minimizing vias.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCVF2505D Overview

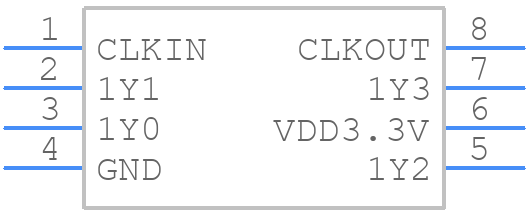

Use the download button to access the CDCVF2505D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCVF,
or try a keyword search, such as Clock Drivers
