CDCVF2505DG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - CDCVF2505DG4 . - PLL Clock Driver, 200 MHz, 3V-3.6V supply, 5 Outputs, SOIC-8

Download CDCVF2505DG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

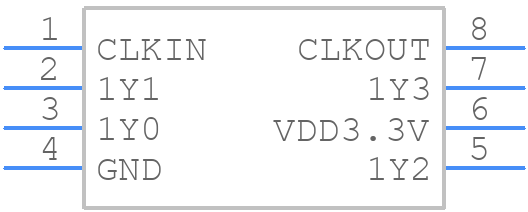

CDCVF2505DG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCVF2505DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
CDCVF2505DG4 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

CDCVF2505DG4 Details

  • Manufacturer Part Number:

    CDCVF2505DG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    2505

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Load Capacitance (CL):

    25 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.15 ns

  • Propagation Delay (tpd):

    0.15 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    200 MHz

CDCVF2505DG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
  • To optimize the clock signal, ensure it meets the specified frequency and amplitude requirements. Use a low-jitter clock source, and consider using a clock buffer or repeater to maintain signal integrity. Additionally, ensure the clock signal is properly terminated to prevent reflections.
  • The CDCVF2505DG4 supports input clock frequencies up to 250 MHz. However, the maximum frequency may vary depending on the specific application and output frequency requirements. Consult the datasheet and application notes for more information.
  • Configure the CDCVF2505DG4 by selecting the appropriate divider values for the input clock frequency and desired output frequency. Use the provided equations and tables in the datasheet to calculate the required divider values. Additionally, consider using the TI Clocking Architect (TCA) software tool to simplify the configuration process.
  • The typical power consumption of the CDCVF2505DG4 varies depending on the input clock frequency, output frequency, and operating conditions. However, the datasheet specifies a typical power consumption of around 150 mW at 3.3 V and 250 MHz input clock frequency. Consult the datasheet for more detailed power consumption information.
