CDCVF25081PW - Texas Instruments

Description: CDCVF25081PW, PLL Clock Driver, 16-Pin TSSOP

Download CDCVF25081PW Model

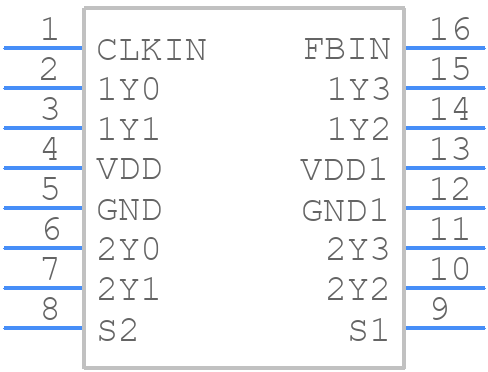

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF25081PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - CDCVF25081PW
click to zoom
3D Models
CDCVF25081PW - Texas Instruments  - 3D model - Small Outline Packages - CDCVF25081PW
click to zoom

CDCVF25081PW Details

  • Manufacturer Part Number:

    CDCVF25081PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    25081

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    25 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    200 MHz

CDCVF25081PW Frequently Asked Questions (FAQs)

  • A good PCB layout for CDCVF25081PW involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure signal integrity, use controlled impedance traces, keep clock and data traces short and matched, and use termination resistors at the receiving end. Also, use a common clock domain and avoid mixing clock domains.
  • The maximum frequency of operation for CDCVF25081PW is 250 MHz, but it can be overclocked up to 300 MHz with proper PCB design and signal integrity measures.
  • Power sequencing is critical for CDCVF25081PW. Ensure that the core voltage (VCC) is powered up before the input voltage (VCCI). During power-down, ensure that the input voltage is removed before the core voltage. Use a power sequencer or a voltage supervisor to ensure proper power sequencing.
  • CDCVF25081PW has a thermal junction-to-ambient resistance of 24°C/W. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Monitor the device temperature and reduce power consumption if it exceeds 85°C.
