CDCVF25081PWG4 - Texas Instruments

Description: Clock Drivers & Distribution 1:8 3.3-V PLL CLOCK DRIVER

Download CDCVF25081PWG4 Model

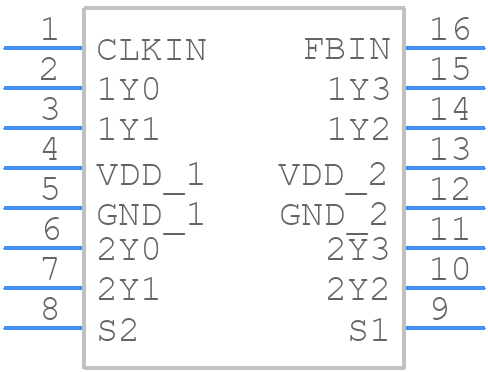

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF25081PWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A 2021
click to zoom
3D Models
CDCVF25081PWG4 - Texas Instruments  - 3D model - Small Outline Packages - PW0016A 2021
click to zoom

CDCVF25081PWG4 Details

  • Manufacturer Part Number:

    CDCVF25081PWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    25081

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    25 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    200 MHz

CDCVF25081PWG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
  • To optimize the clock signal, ensure it meets the specified frequency and amplitude requirements. Use a low-jitter clock source, and consider using a clock buffer or repeater to maintain signal integrity. Additionally, ensure the clock signal is properly terminated to prevent reflections.
  • The CDCVF25081PWG4 supports input clock frequencies up to 250 MHz. However, the maximum frequency may vary depending on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and perform simulations to ensure the device operates within its specifications.
  • Metastability issues can occur when the input clock signal is not properly synchronized with the device's internal clock domain. To mitigate this, use a clock domain crossing (CDC) circuit or a synchronizer to ensure proper clock synchronization. Additionally, consider using a metastability-hardened flip-flop or a synchronizer with a built-in metastability filter.
  • To ensure optimal performance, follow the recommended layout and routing guidelines in the datasheet. Keep the clock signal traces short and away from noisy signals, and use a solid ground plane to reduce noise and EMI. Additionally, consider using a clock tree or a clock distribution network to minimize skew and jitter.
