A good PCB layout for the CDCVF25081PWR involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
The output termination for the CDCVF25081PWR depends on the specific application and the transmission line impedance. A common practice is to use a series termination resistor (Rs) of 50-75 ohms, and a parallel termination resistor (Rp) of 50-100 ohms. However, the optimal termination values may vary depending on the specific use case, and it's recommended to consult the application notes and simulation tools to determine the best termination values.
The CDCVF25081PWR can support clock frequencies up to 250 MHz, but the maximum frequency may vary depending on the specific application, PCB layout, and output loading. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations and to perform thorough testing to ensure the device meets the required specifications.
To ensure proper power and decoupling, it's recommended to use a high-quality power supply with low noise and ripple, and to decouple the device with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed close to the device. Additionally, it's recommended to use a power plane and a ground plane on the PCB to minimize noise and ensure optimal performance.
The CDCVF25081PWR has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. To ensure proper heat dissipation, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. Additionally, it's recommended to follow the thermal design guidelines provided in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCVF25081PWR Overview

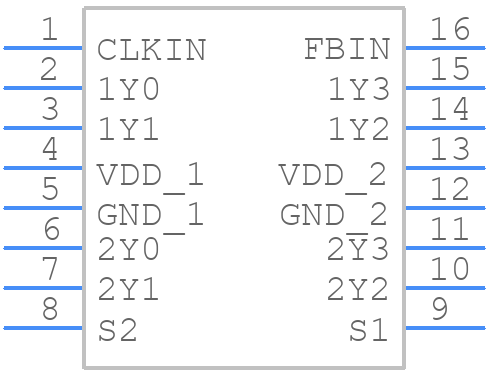

Use the download button to access the CDCVF25081PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCVF,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
