CDCVF2510PWR - Texas Instruments

Description: Clock Drivers & Distribution 3.3V Clock

Download CDCVF2510PWR Model
Schematic
symbols

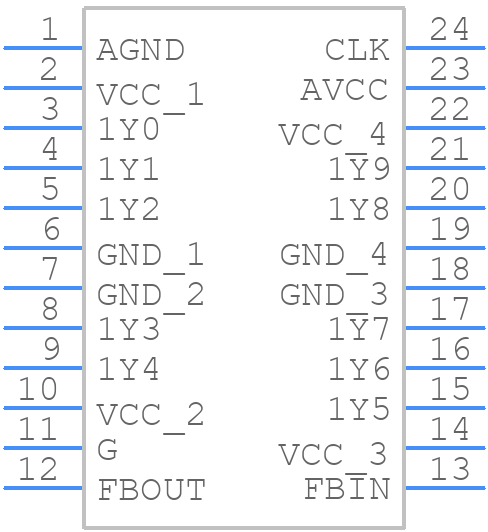

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF2510PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G24)
click to zoom
3D Models
CDCVF2510PWR - Texas Instruments  - 3D model - Small Outline Packages - PW (R-PDSO-G24)
click to zoom

CDCVF2510PWR Details

  • Manufacturer Part Number:

    CDCVF2510PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    2510

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Load Capacitance (CL):

    25 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Characteristics:

    SERIES-RESISTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    3.9 ns

  • Propagation Delay (tpd):

    3.9 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    175 MHz

CDCVF2510PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, routing, and grounding to minimize noise and EMI.
  • The output termination depends on the application and the transmission line impedance. TI recommends using a 50-ohm termination for most applications, but a 75-ohm termination may be required for some video applications. Refer to the application note SLUA271 for more information.
  • The CDCVF2510PWR can support clock frequencies up to 2.5 GHz, but the actual frequency limit depends on the specific application, PCB layout, and signal integrity. TI recommends performing signal integrity analysis to determine the maximum clock frequency for a specific design.
  • The CDCVF2510PWR can be configured for differential or single-ended output by setting the OE (output enable) and DE (differential enable) pins. Refer to the datasheet and application note SLUA271 for more information on configuring the device for specific output modes.
  • The power consumption of CDCVF2510PWR depends on the clock frequency, output load, and operating conditions. TI recommends using the power-down mode (PD pin) to reduce power consumption when the device is not in use. Additionally, optimizing the PCB layout and using a low-power mode (LPM pin) can also help reduce power consumption.
