CDCVF855PW - Texas Instruments

Description: 2.5V Phase Lock Loop DDR Clock Driver

Download CDCVF855PW Model

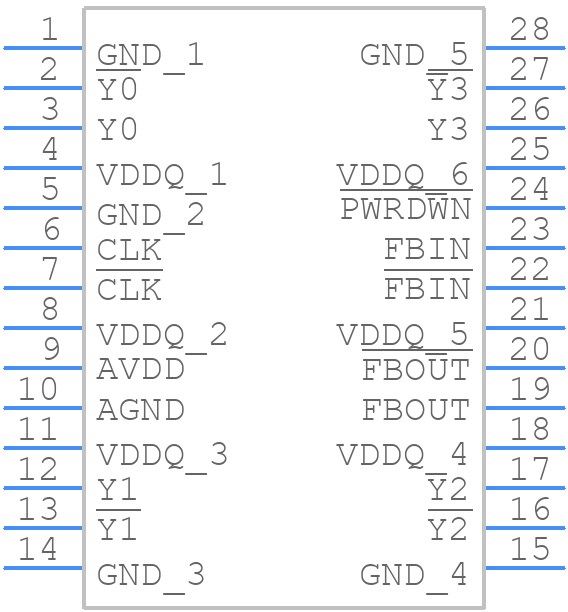

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF855PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
CDCVF855PW - Texas Instruments  - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

CDCVF855PW Details

  • Manufacturer Part Number:

    CDCVF855PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    855

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Load Capacitance (CL):

    14 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    10 mA

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    220 MHz

CDCVF855PW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper initialization and prevents damage to the device.
  • To optimize for low power consumption, use the lowest possible input clock frequency, disable unused outputs, and use the power-down mode when not in use. Additionally, consider using a lower voltage supply and optimizing the output load capacitance.
  • The CDCVF855PW can handle input clock frequencies up to 250 MHz. However, the maximum frequency may vary depending on the specific application, output frequency, and load conditions.
  • Yes, the CDCVF855PW can be used as a clock multiplier. It can multiply the input clock frequency by a factor of 2, 4, 6, or 8, depending on the configuration of the device.
  • To ensure proper signal integrity and minimize jitter, use a low-impedance output driver, keep the output traces short and well-matched, and use a high-quality clock signal as the input. Additionally, consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter.
