CEE156 - Sumida

Description: Max. Operating frequency 1MHz,Max. Operating Power 8.8W(500kHz). 15.5×12.5mm Max.(L×W), 7.5mm Max. Height

Download CEE156 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CEE156 model

Email notifications will be applied after download.

Send part feedback

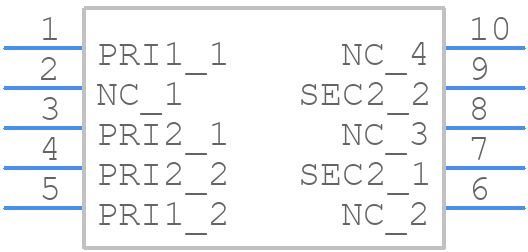

Symbol

CEE156 - Sumida - PCB symbol

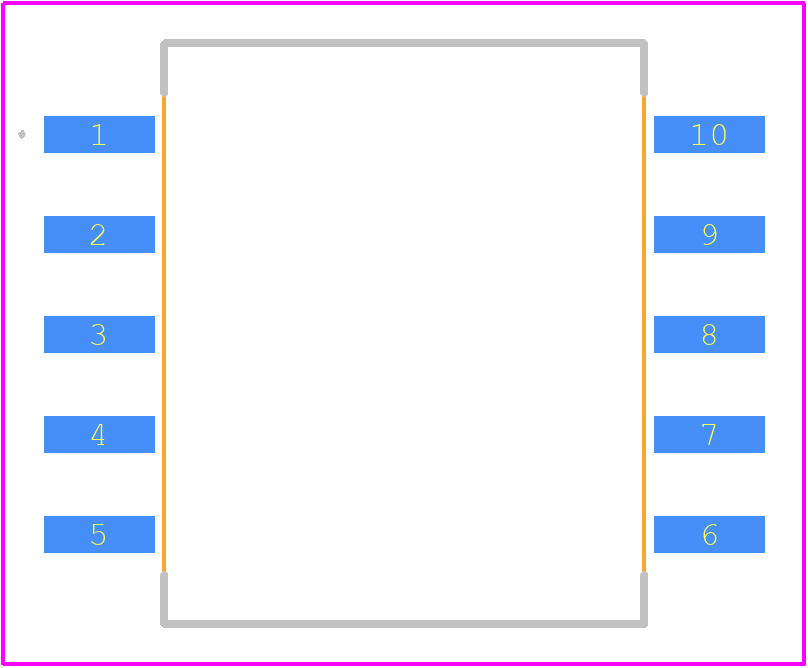

PCB Footprints

CEE156 - Sumida PCB footprint - Other - Other - 12m x 14.5mm x 7.5mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for CEE156
Part Number CEE156
Manufacturer Sumida
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - 12m x 14.5mm x 7.5mm
Released Date Oct 12, 2024
Last Modified Date Oct 12, 2024 12:24 PM UTC
Pinout / Pin List Click Here (Member Only)

CEE156 Details

Manufacturer Part Number:
CEE156
Manufacturer:
Sumida Corporation

Trust Checks

Community Provided

System Verified

Community Approved

CEE156 Overview

Use the download button to access the CEE156 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CEE15, or try a keyword search, such as Fixed Inductors
