CES-111-02-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

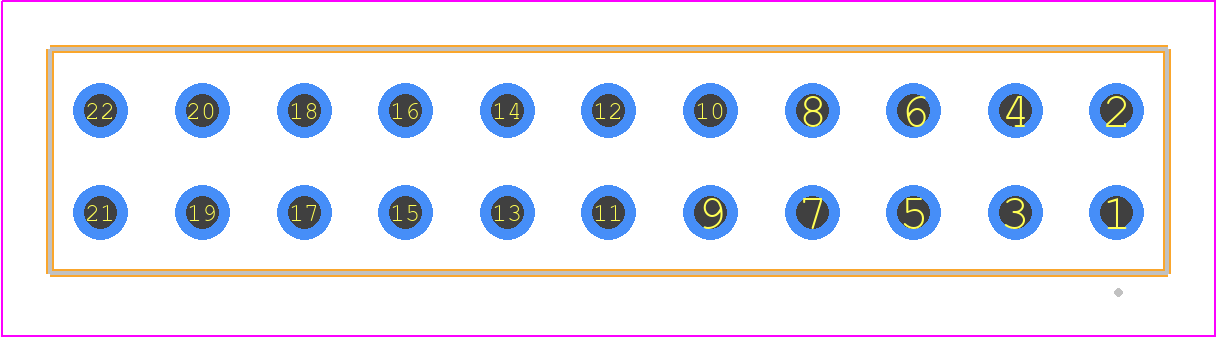

PCB Footprints

CES-111-02-L-D - SAMTEC PCB footprint - Other - Other - CES-111-XX-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CES-111-02-L-D
Part Number CES-111-02-L-D
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - CES-111-XX-X-D
Released Date Jun 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CES-111-02-L-D Details

Manufacturer Part Number:
CES-111-02-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
LOW PROFILE
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
22

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CES-111-02-L-D Overview

Use the download button to access the CES-111-02-L-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CES-1, or try a keyword search, such as Headers and Edge Type Connectors
