CF2-12V - Panasonic

Description: RELAY AUTOMOTIVE SPDT 10A 12V

Download CF2-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

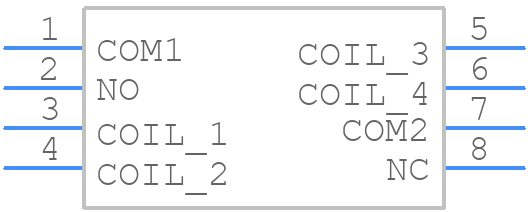

CF2-12V - Panasonic - PCB symbol
click to zoom
PCB Footprints

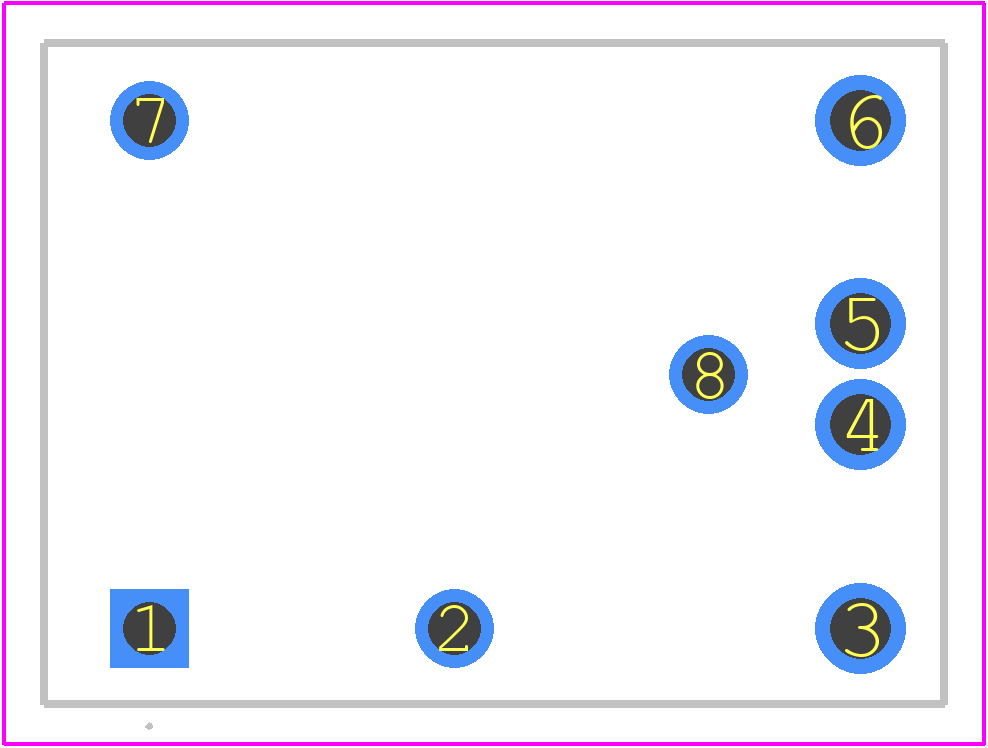

CF2-12V - Panasonic PCB footprint - Other - Other - CF2-12V-6
click to zoom
3D Models
CF2-12V - Panasonic - 3D model - Other - CF2-12V-6
click to zoom

CF2-12V Details

  • Manufacturer Part Number:

    CF2-12V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    16.5 mm

  • Body Height:

    16.5 mm

  • Body Length or Diameter:

    22.5 mm

  • Coil Current(DC)-Max:

    0.053 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    640 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    225 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    22.5mm x 16.5mm x 16.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
