OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUI, OVER TEMP
Ripple Voltage (Main Out):
0.11312 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
608 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.16 s
Width:
61 mm
CFB600-24S32 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. Additionally, it's recommended to use a thermal pad or heat sink to dissipate heat.
To ensure EMC with the CFB600-24S32, it's recommended to follow proper PCB design and layout guidelines, use shielding and filtering components, and ensure that the converter is properly grounded. Additionally, the converter should be placed in a metal enclosure and the input and output cables should be properly shielded.
The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet, but as a general rule, it's recommended to use capacitors with a capacitance value that is 10-20% higher than the recommended value to ensure stable operation.
To troubleshoot issues with the CFB600-24S32, it's recommended to check the input voltage, output voltage, and current, as well as the temperature of the converter. Additionally, check the PCB layout and design for any errors or omissions, and ensure that the converter is properly configured and installed.
Yes, the CFB600-24S32 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's recommended soldering profile and temperature guidelines to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-24S32 Overview

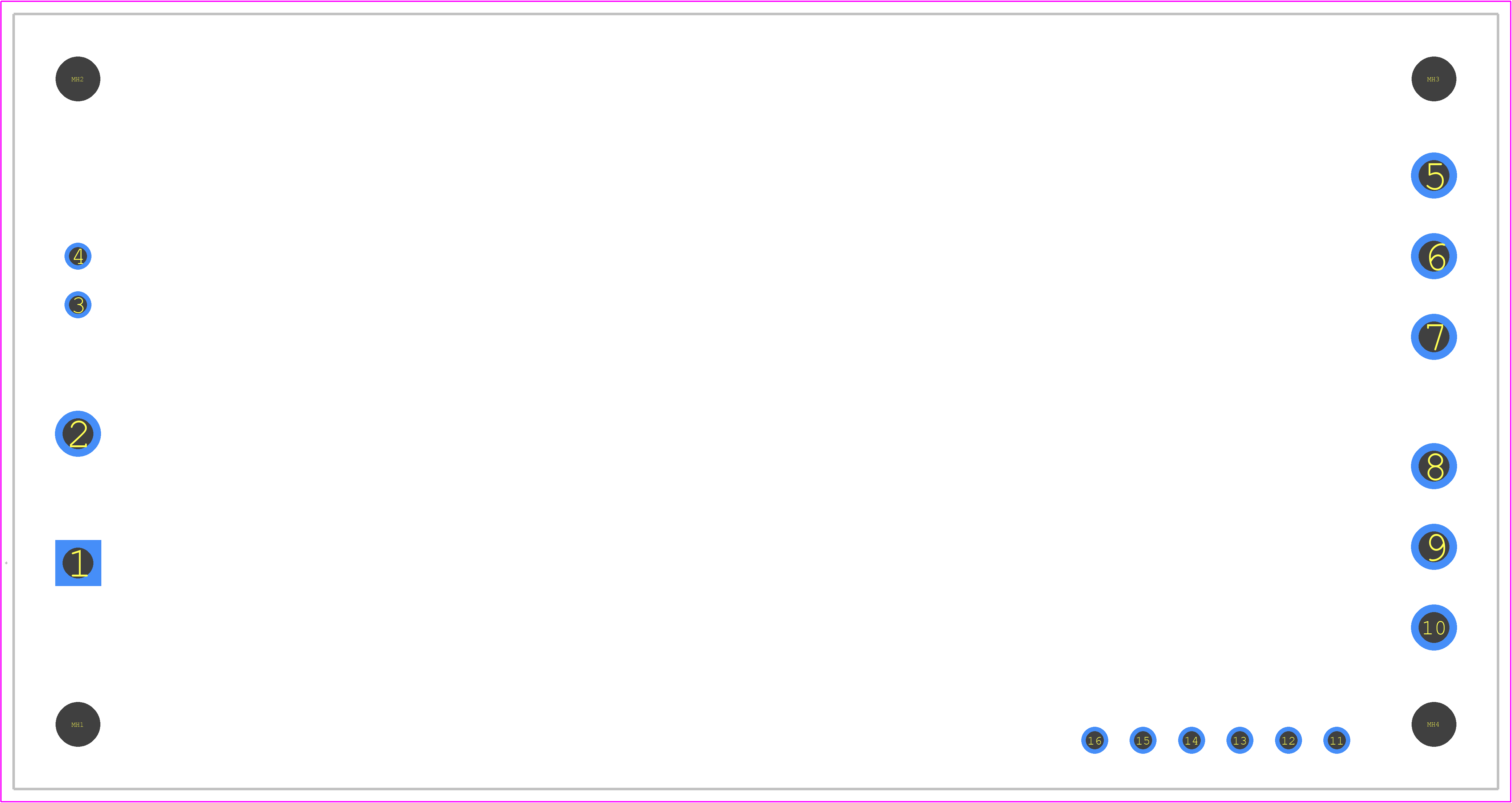

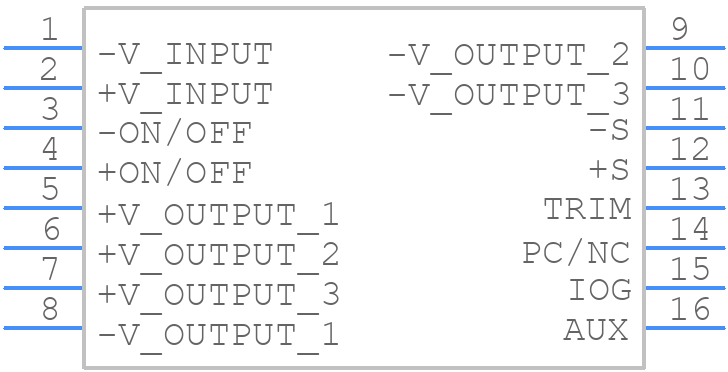

Use the download button to access the CFB600-24S32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB60,
or try a keyword search, such as Power Supply Modules
