OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUI, OVER TEMP
Ripple Voltage (Main Out):
0.16968 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.16 s
Width:
61 mm
CFB600-24S48 Frequently Asked Questions (FAQs)
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
To ensure EMC and EMI compliance, follow the recommended PCB layout, use a metal enclosure, add EMI filters if necessary, and ensure that the converter is properly shielded. Additionally, perform EMC and EMI testing to validate compliance with relevant standards.
The derating curves can be obtained from Cincon Electronics Corporation directly or through their authorized distributors. These curves provide information on the converter's performance under various environmental conditions, allowing engineers to design for specific applications.
Yes, the CFB600-24S48 can be used in redundant or parallel configurations, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with Cincon Electronics Corporation or a qualified engineer for guidance on implementing such configurations.
The reliability and MTBF estimates can be obtained from Cincon Electronics Corporation or through their reliability reports. These estimates provide information on the converter's expected lifespan and failure rates, allowing engineers to design for high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-24S48 Overview

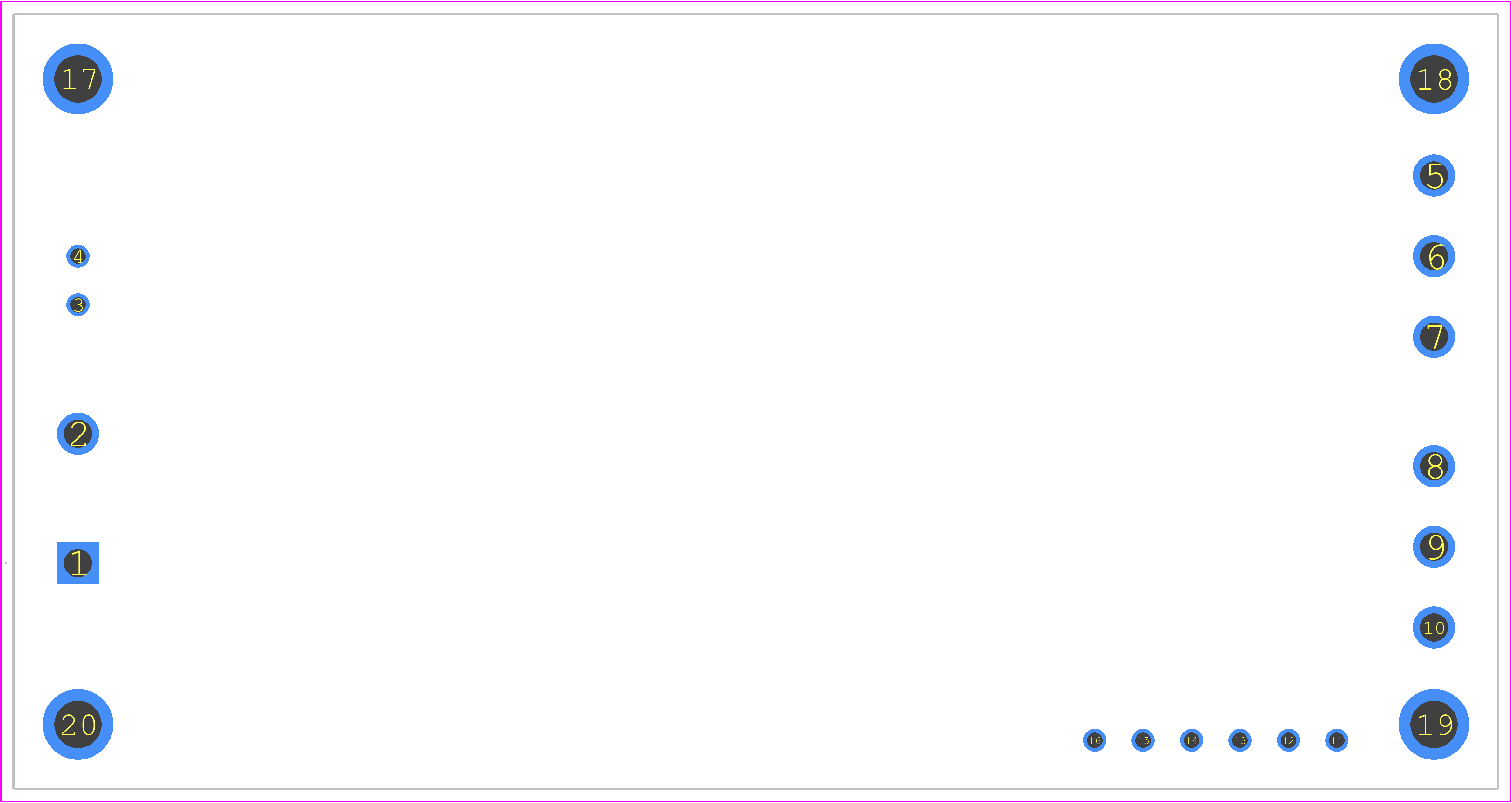

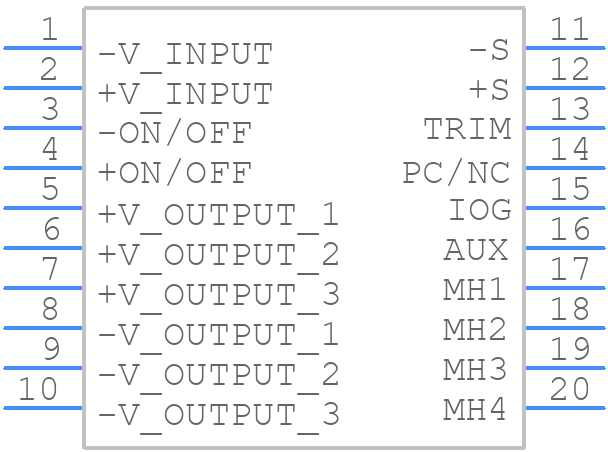

Use the download button to access the CFB600-24S48 schematic symbol, PCB footprint, and 3D model.
