The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable and efficient power transmission, it is essential to follow proper wiring and cabling practices, such as using twisted pairs, shielding, and proper termination. Additionally, the power supply should be designed to provide a stable output voltage and current, and the system should be protected against overvoltage, undervoltage, and overcurrent conditions.
The CFB750-300S48 is designed to meet various safety standards and certifications, including UL, CE, and RoHS. However, it is essential to ensure that the final application meets the relevant safety standards and regulations, such as IEC 62368-1, IEC 60950-1, and others. Additionally, proper safety precautions should be taken during handling, installation, and operation of the module.
To troubleshoot common issues with the CFB750-300S48, it is essential to follow a systematic approach, including checking the input voltage, output voltage, and current, as well as monitoring the temperature and output ripple. Additionally, the module's datasheet and application notes should be consulted, and the manufacturer's technical support should be contacted if necessary.
The CFB750-300S48 is designed to operate in a wide range of environmental and operating conditions, including temperatures from -40°C to 85°C, humidity up to 95%, and vibration up to 10G. However, it is essential to consult the datasheet and application notes for specific details on the recommended operating conditions and any necessary derating or precautions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB750-300S48 Overview

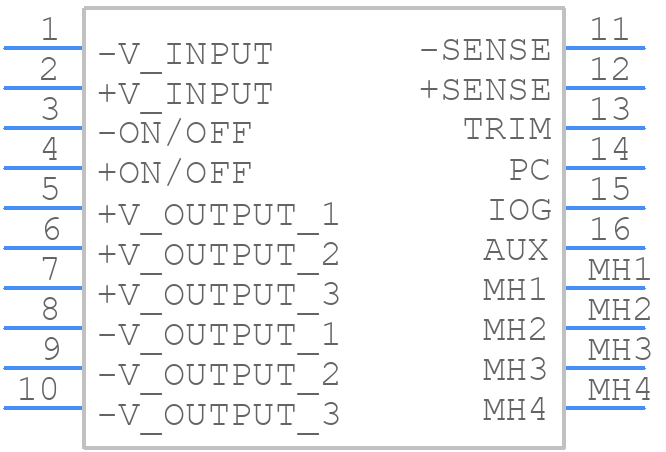

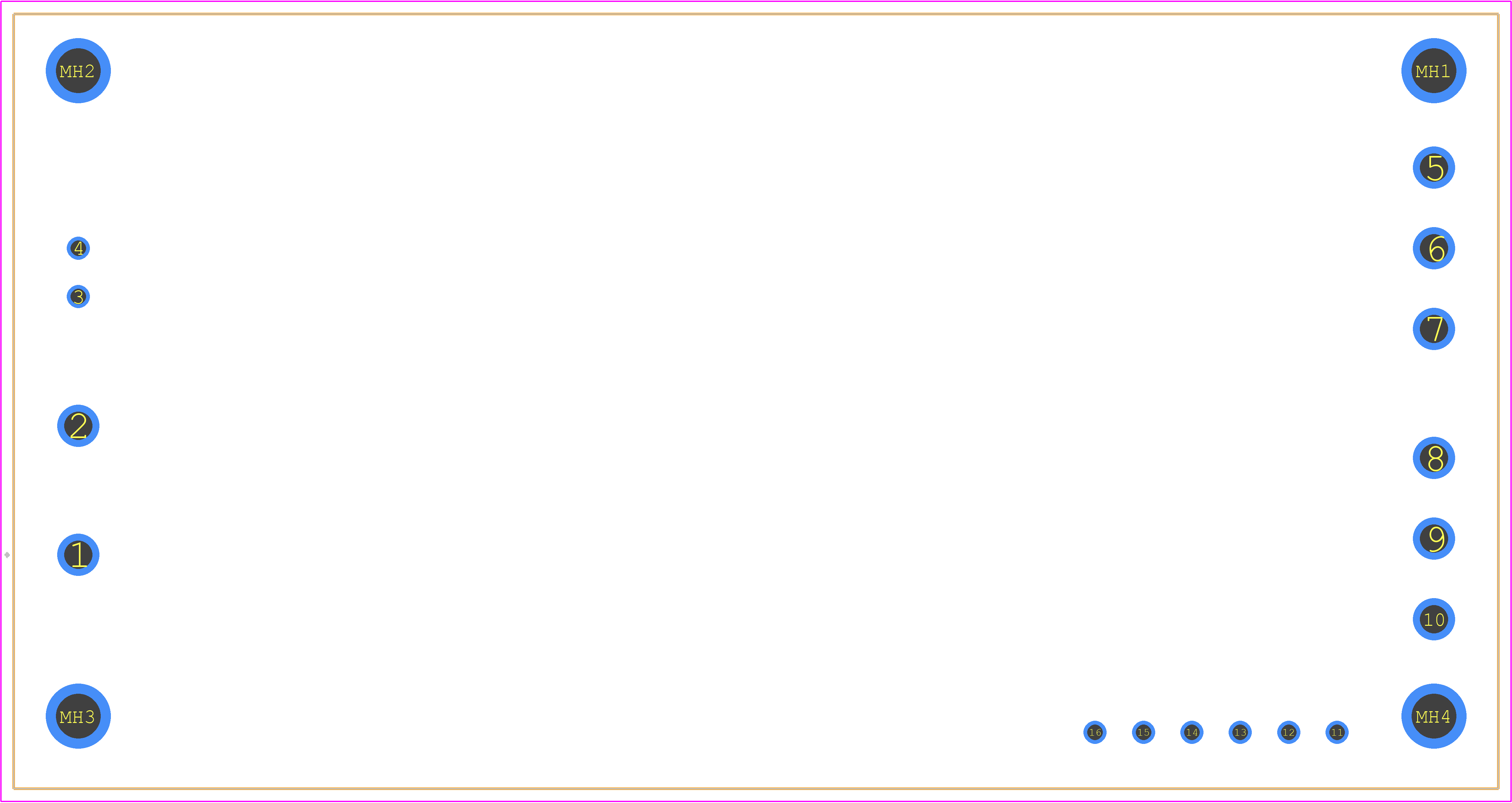

Use the download button to access the CFB750-300S48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB75,
or try a keyword search, such as Power Supply Modules
