The recommended PCB layout involves placing the DC-DC converter near the input capacitors and output capacitors, with a solid ground plane and minimal thermal resistance. Thermal management involves providing adequate airflow, using thermal vias, and applying thermal interface material (TIM) between the converter and heat sink.
To ensure EMC, use a shielded enclosure, keep the input and output cables short and away from each other, and add EMI filters or common-mode chokes as needed. Also, follow the recommended layout and grounding scheme, and use a low-ESR input capacitor.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as a function of temperature, altitude, or other environmental factors. The derating curve helps engineers to determine the maximum output power under specific operating conditions.
Yes, the CFM05S120 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault detection. Consult with the manufacturer or a qualified engineer for guidance.
The CFM05S120 is commonly used in industrial control systems, telecommunications, datacom, and other applications requiring a compact, high-reliability DC-DC converter. It's suitable for powering low-voltage devices, such as FPGAs, ASICs, or microprocessors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFM05S120 Overview

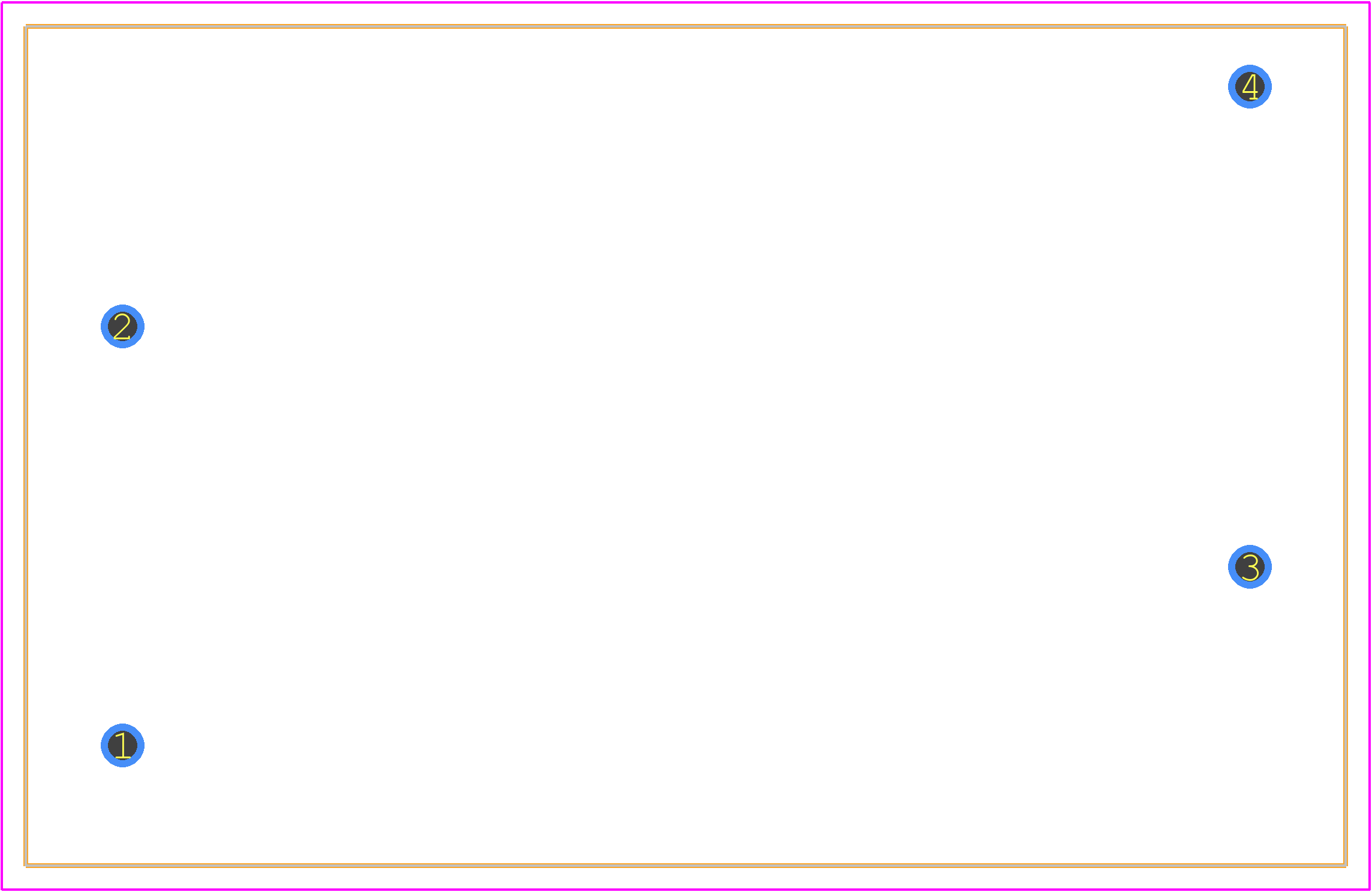

Use the download button to access the CFM05S120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFM05,
or try a keyword search, such as Power Supply Modules
