The recommended PCB layout for optimal thermal performance involves placing the CFM1502S near a thermal pad or a heat sink, and ensuring good airflow around the component. A minimum of 2oz copper thickness is recommended for the PCB to ensure efficient heat dissipation.
To ensure reliable start-up of the CFM1502S, it is recommended to use a soft-start circuit to limit the inrush current during power-on. Additionally, a sufficient input capacitance (e.g., 10uF) should be used to filter out noise and ensure stable operation.
The maximum allowed voltage deviation for the CFM1502S is ±10% of the nominal input voltage. Exceeding this deviation may affect the converter's performance, efficiency, and reliability.
While the CFM1502S is rated for operation up to 85°C, it is recommended to derate the output power by 1.5% per degree Celsius above 70°C to ensure reliable operation in high-temperature environments.
To troubleshoot issues with the CFM1502S, start by checking the input voltage, output voltage, and output current. Verify that the component is properly soldered and that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact Cincon Electronics Corporation's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFM1502S Overview

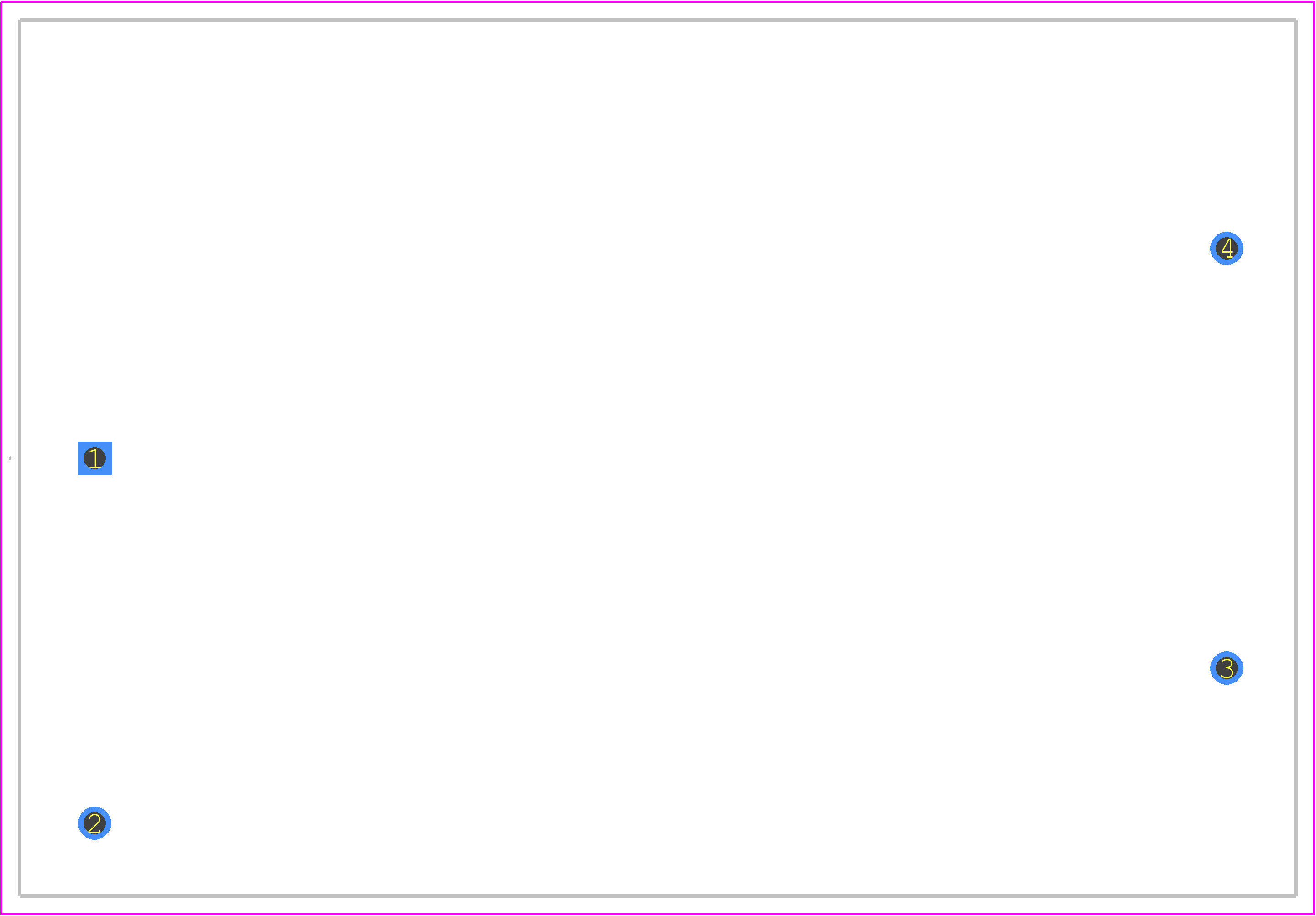

Use the download button to access the CFM1502S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFM15,
or try a keyword search, such as Power Supply Modules
