The recommended PCB layout and thermal management for the CFM25S240-E involve placing the component on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and ensuring good airflow around the component. A heat sink or thermal pad may also be necessary for high-power applications.
To ensure the reliability and long-term stability of the CFM25S240-E, it's essential to follow the recommended operating conditions, use a suitable input filter, and implement overvoltage and undervoltage protection. Additionally, ensuring good thermal management, using a clean and stable input power source, and avoiding electrical overstress can help prolong the converter's lifespan.
Output voltage instability or oscillation in the CFM25S240-E can be caused by factors such as inadequate input decoupling, poor PCB layout, incorrect output capacitor selection, or insufficient output filtering. Other possible causes include input voltage noise, electromagnetic interference, or incorrect configuration of the converter's feedback loop.
To troubleshoot and debug issues with the CFM25S240-E, start by verifying the input power source, checking the output voltage and current, and ensuring that the converter is properly configured. Use an oscilloscope to analyze the output voltage waveform and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Operating the CFM25S240-E outside its recommended specifications can lead to reduced performance, decreased efficiency, and potentially even damage to the component. This can include operating at input voltages or temperatures beyond the recommended range, or exceeding the maximum output current or power rating. Always ensure that the converter is operated within its specified limits to guarantee reliable and safe operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFM25S240-E Overview

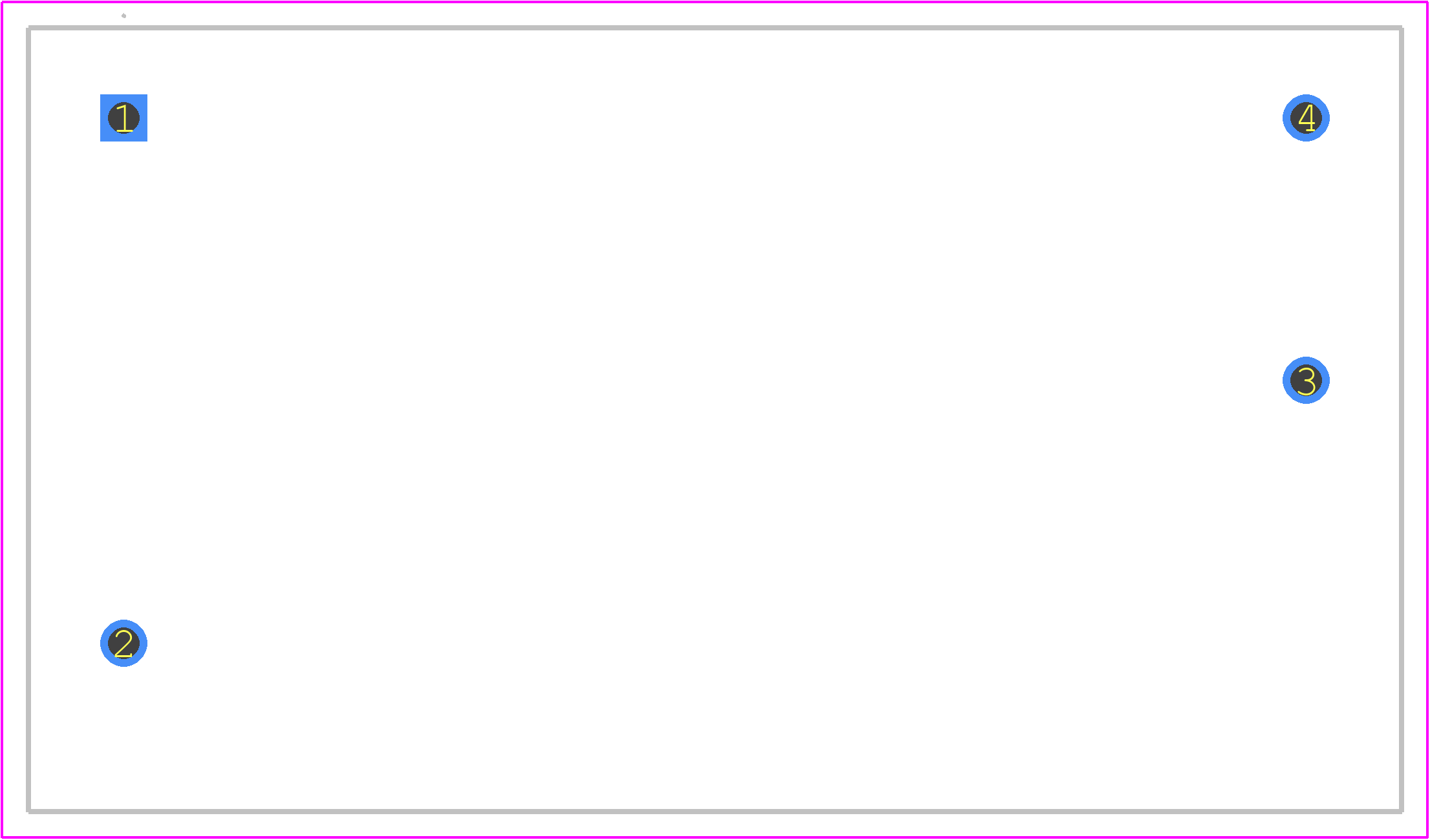

Use the download button to access the CFM25S240-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFM25,
or try a keyword search, such as Power Supply Modules
