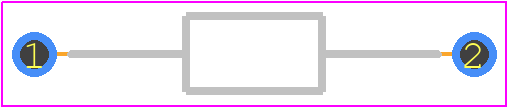

CFR-12JB-52-56R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - CFR-12-ren1
click to zoom
3D Models
CFR-12JB-52-56R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - CFR-12-ren1
click to zoom

CFR-12JB-52-56R Details

  • Manufacturer Part Number:

    CFR-12JB-52-56R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.65

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    6

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.45 mm

  • Lead Length:

    28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    1.9 mm

  • Package Length:

    3.4 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    0.1666 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    56 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CARBON FILM

  • Temperature Coefficient:

    -500,350 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    150 V
