The recommended soldering temperature for CFR-25JB-52-5M1 is 260°C (500°F) for a maximum of 10 seconds.
Yes, the CFR-25JB-52-5M1 is a metal film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
The CFR-25JB-52-5M1 has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.
The CFR-25JB-52-5M1 has a maximum operating temperature of 155°C (311°F). While it can tolerate high temperatures, it's essential to derate the power rating accordingly to ensure reliable operation.
Yes, the CFR-25JB-52-5M1 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFR-25JB-52-5M1 Overview

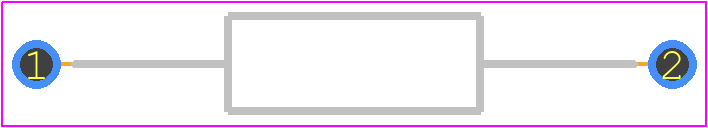

Use the download button to access the CFR-25JB-52-5M1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFR-2,
or try a keyword search, such as Carbon Film Resistors
