CG2409X3-C2 - CEL

Description: RF Switch ICs 50-6000MHz SPDT 802.11a/b/g/n/ac

Download CG2409X3-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

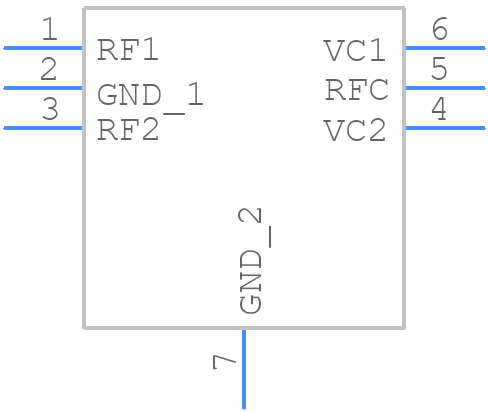

CG2409X3-C2 - CEL - PCB symbol
click to zoom
PCB Footprints
CG2409X3-C2 - CEL PCB footprint - Small Outline No-lead - Small Outline No-lead - CG2409X3-C2
click to zoom
3D Models
CG2409X3-C2 - CEL - 3D model - Small Outline No-lead - CG2409X3-C2
click to zoom

CG2409X3-C2 Details

  • Manufacturer Part Number:

    CG2409X3-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    California Eastern Laboratories (CEL)

  • YTEOL:

    6.8

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    38 dBm

  • Insertion Loss-Max:

    0.85 dB

  • JESD-609 Code:

    e6

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • VSWR-Max:

    1.22

CG2409X3-C2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use 50-ohm transmission lines for the RF signals.
  • Use a voltage regulator to maintain a stable 5V supply. Ensure the bias voltage (Vb) is set to 2.5V ± 0.1V and the current limit (Ilim) is set to 20mA ± 1mA.
  • The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +100°C with reduced performance and reliability.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedances are matched, and the device is properly biased. Use a spectrum analyzer to identify any unwanted frequency components.
  • Yes, the CG2409X3-C2 can be used in a push-pull configuration. However, ensure the devices are properly matched and biased to avoid uneven current sharing and potential oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CG2409X3-C2 Overview

Use the download button to access the CG2409X3-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CG240, or try a keyword search, such as RF/Microwave Switches
