A good thermal design is crucial for high-power devices like the CGHV27015S. A recommended PCB layout includes a large copper area for heat dissipation, multiple vias for thermal conduction, and a thermal pad for heat sinking. Additionally, a heat sink or a thermal interface material can be used to improve heat dissipation.
To prevent oscillations, ensure that the device is biased correctly, and the input and output impedances are matched. Use a stable bias circuit, and consider adding resistive loading or a stability network to prevent oscillations. Additionally, ensure that the device is operated within its recommended operating conditions.
The recommended drive and bias conditions for the CGHV27015S include a gate voltage range of -2 to 2 V, a drain voltage range of 0 to 50 V, and a quiescent current of 100-200 mA. The device should be biased in Class AB operation for optimal performance.
To protect the CGHV27015S from ESD, handle the device with an ESD wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind. For overvoltage protection, use a voltage limiter or a zener diode to clamp the voltage to a safe level.
The CGHV27015S has a maximum junction temperature of 150°C. For high-power operation, derate the device's power handling capability based on the ambient temperature and the device's thermal resistance. Ensure that the device is operated within its recommended thermal specifications to prevent overheating and premature failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CGHV27015S Overview

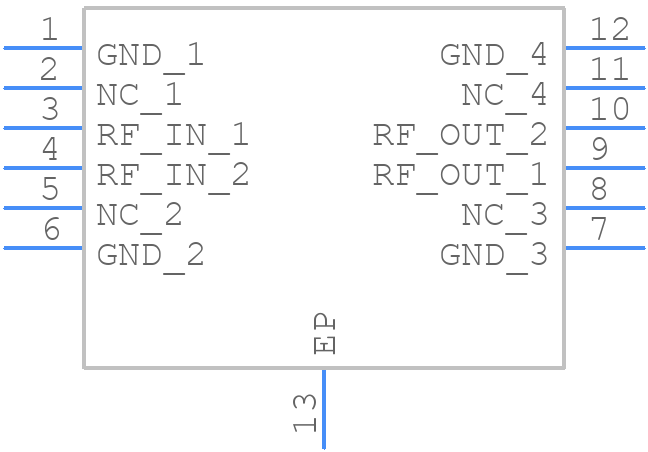

Use the download button to access the CGHV27015S schematic symbol, PCB footprint, and 3D model.
