A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
Use shielded cables with a characteristic impedance of 100 ohms, and ensure the cable length is within the recommended specifications. Also, use a common mode choke or a ferrite bead to reduce electromagnetic interference.
The maximum cable length supported is 30 meters at a data rate of 3.125 Gbps. However, this can vary depending on the cable quality, signal attenuation, and noise levels.
Check the power supply voltage, clock signal, and data signal integrity. Use an oscilloscope to verify the signal quality and check for any signal reflections or attenuation. Also, ensure the device is properly configured and the firmware is up-to-date.
Yes, the CH7036A-BF supports multi-lane configurations. However, this requires careful planning and design to ensure proper signal routing, clock synchronization, and data transmission.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CH7036A-BF Overview

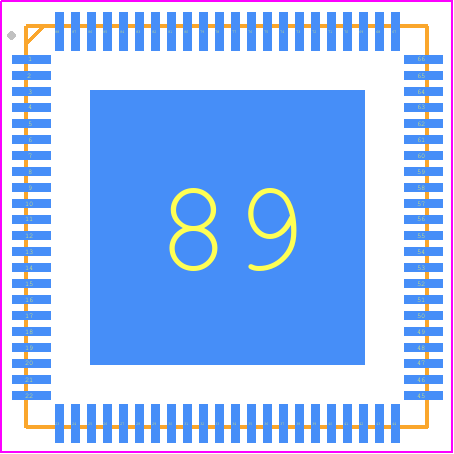

Use the download button to access the CH7036A-BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CH703,
or try a keyword search, such as Other Consumer ICs
