CH7038A-TF - Chrontel

CH7038A-TF Details

• Manufacturer Part Number:

  CH7038A-TF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

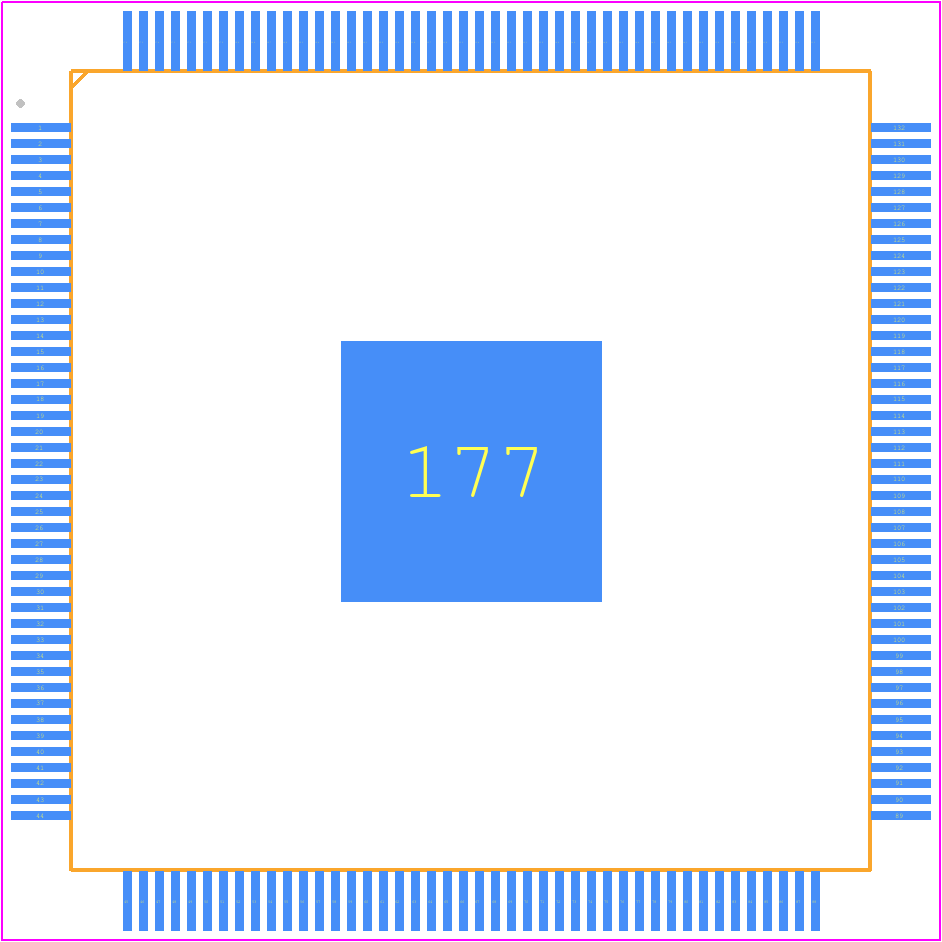

• Package Description:

  ETQFP-176

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Chrontel Inc

• YTEOL:

  0

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  S-PQFP-G176

• Length:

  20 mm

• Number of Functions:

  1

• Number of Terminals:

  176

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP176,.87SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.6 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  20 mm
