CH7105B-BFI - Chrontel

Description: Consumer Circuit

Download CH7105B-BFI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

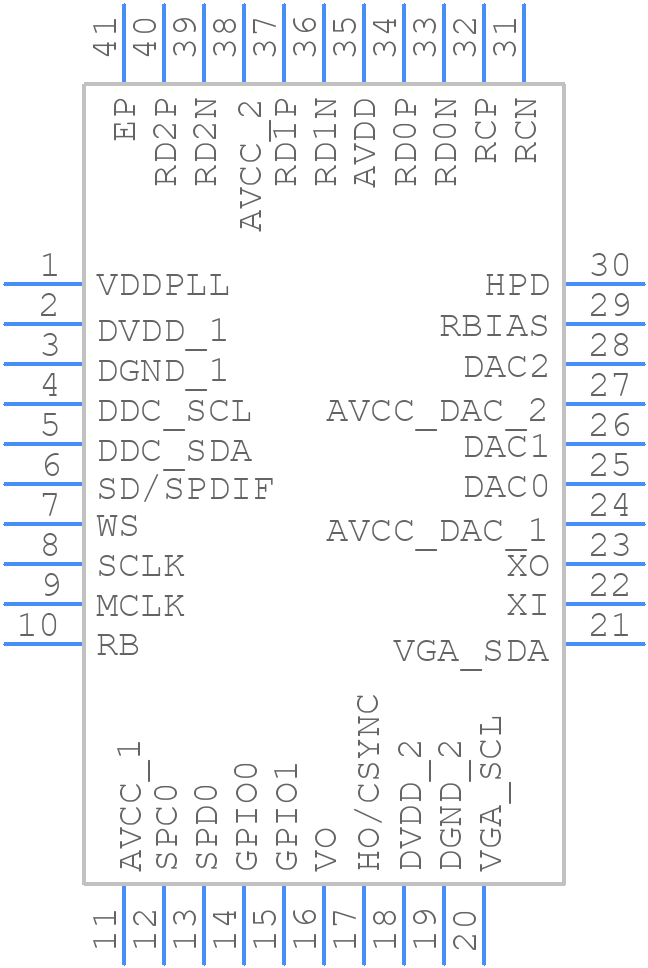

Symbol
CH7105B-BFI - Chrontel - PCB symbol
click to zoom
PCB Footprints
CH7105B-BFI - Chrontel PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 Pin QFN Package
click to zoom
3D Models
CH7105B-BFI - Chrontel - 3D model - Quad Flat No-Lead - 40 Pin QFN Package
click to zoom

CH7105B-BFI Details

  • Manufacturer Part Number:

    CH7105B-BFI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-40

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Chrontel Inc

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

CH7105B-BFI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use high-quality HDMI cables with good shielding and impedance control. Also, ensure that the cable is rated for the desired bandwidth (e.g., 4K@60Hz) and length. Consider using active HDMI cables or repeaters for longer distances.
  • The CH7105B-BFI supports cable lengths up to 30 meters (100 feet) at 4K@60Hz resolution. However, the actual cable length may vary depending on the cable quality, signal frequency, and system configuration.
  • MST mode is enabled by setting the MST_EN pin high. The device will then support up to 4 independent streams. Consult the datasheet and application notes for detailed configuration and programming information.
  • The power consumption of the CH7105B-BFI varies depending on the operating mode. In typical HDMI 2.0 mode, the power consumption is around 1.2W. In low-power mode, it can be as low as 0.5W. Consult the datasheet for detailed power consumption information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CH7105B-BFI Overview

Use the download button to access the CH7105B-BFI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CH710, or try a keyword search, such as Other Consumer ICs
