CH7517A-BF - Chrontel

Description: 40 QFN, Lead-free,Operating Temperature RangeCommercial : 0 to 70C,Minimum Order Quantity 490/Tray

Download CH7517A-BF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

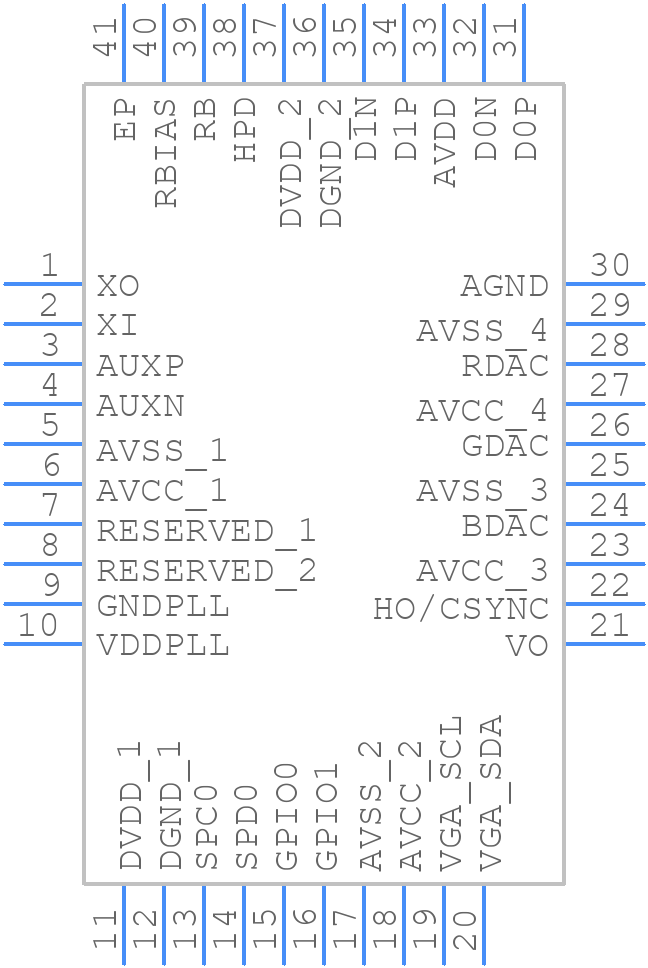

Symbol
CH7517A-BF - Chrontel - PCB symbol
click to zoom
PCB Footprints
CH7517A-BF - Chrontel PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 pin qfen
click to zoom
3D Models
CH7517A-BF - Chrontel - 3D model - Quad Flat No-Lead - 40 pin qfen
click to zoom

CH7517A-BF Details

  • Manufacturer Part Number:

    CH7517A-BF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-40

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Chrontel Inc

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.2 V

  • Supply Voltage-Min (Vsup):

    1.05 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

CH7517A-BF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Ensure good thermal design, use a heat sink if necessary, and follow the recommended operating temperature range of -40°C to 85°C. Also, consider using a thermal pad or thermal interface material to improve heat dissipation.
  • The maximum cable length supported by the CH7517A-BF is 30 meters (100 feet) for HDMI 2.0 and 10 meters (33 feet) for HDMI 1.4. However, the actual cable length may vary depending on the cable quality and the specific application.
  • Check the power supply voltage, clock frequency, and signal integrity. Verify that the device is properly configured and that the input signals meet the recommended specifications. Use an oscilloscope or a signal analyzer to debug the issue.
  • No, the CH7517A-BF only supports up to HDMI 2.0. For HDMI 2.1 or higher, consider using a more advanced chip from Chrontel or other manufacturers that support the latest HDMI standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CH7517A-BF Overview

Use the download button to access the CH7517A-BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CH751, or try a keyword search, such as Other Consumer ICs
