The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid ground plane, and keeping the input and output capacitors close to the converter. Additionally, a thermal relief pattern on the PCB can help to dissipate heat more efficiently.
To ensure reliable start-up of the converter, it is recommended to add a soft-start circuit to limit the inrush current, use a sufficient input capacitance to filter out noise, and ensure that the input voltage is within the specified range.
Operating the converter outside of the recommended input voltage range may affect its efficiency, reliability, and output voltage regulation. It may also lead to reduced output power, increased heat generation, and potentially even damage to the converter.
To troubleshoot issues with the converter's output voltage regulation, check the input voltage, output load, and ambient temperature. Verify that the input voltage is within the specified range, the output load is within the recommended range, and the ambient temperature is within the specified operating range.
The CHB100-24S12 is designed to meet CISPR 22 Class B emissions standards. To minimize EMI/EMC issues, use a metal enclosure, keep the converter away from sensitive circuits, and use EMI filters or shielding if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB100-24S12 Overview

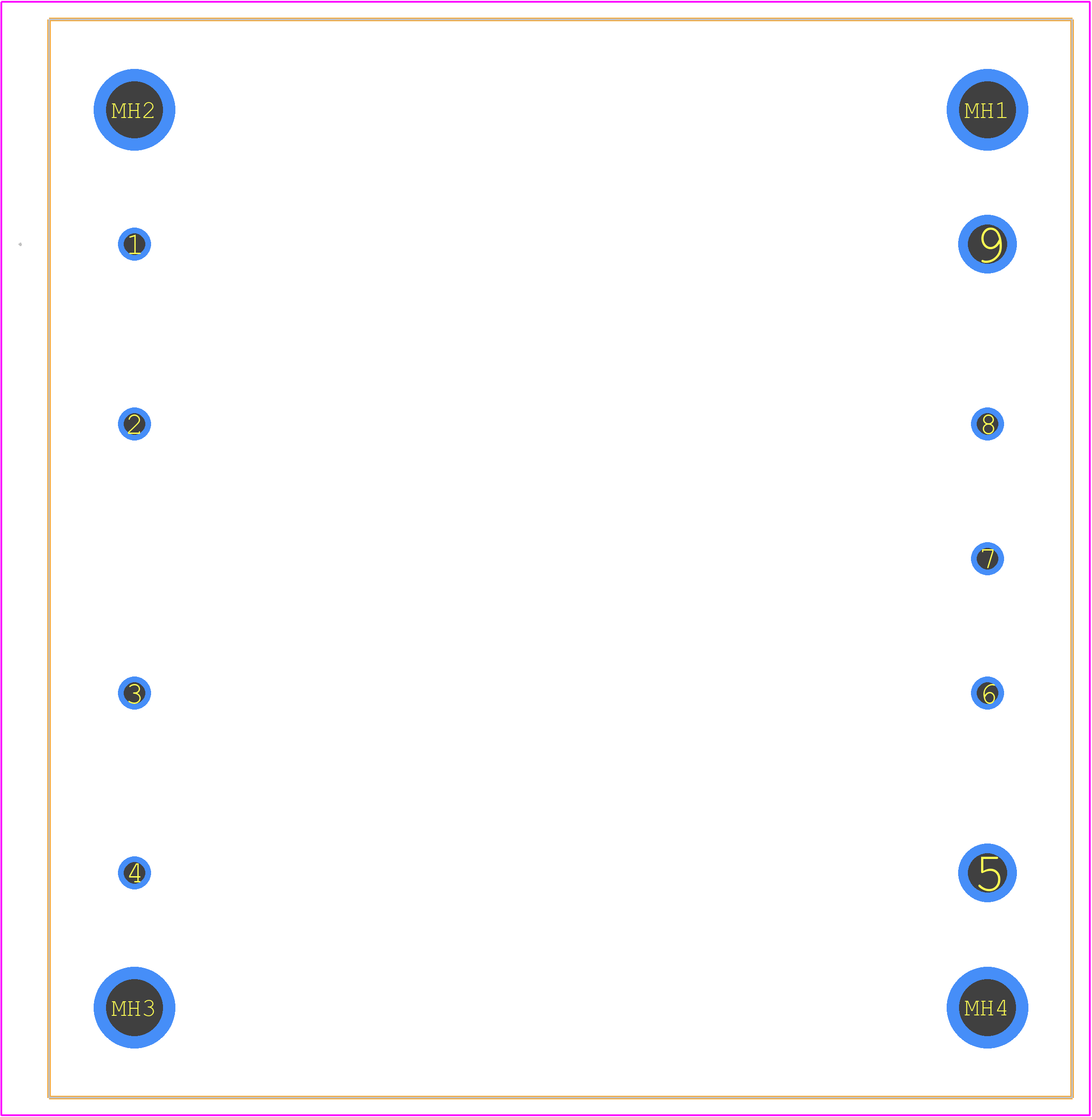

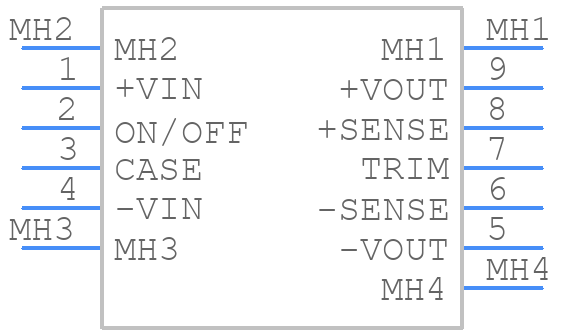

Use the download button to access the CHB100-24S12 schematic symbol, PCB footprint, and 3D model.
