The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable and efficient power transmission, it is recommended to use twisted pair cables with a shielded wire and a drain wire to minimize electromagnetic interference (EMI). Additionally, the power cables should be kept as short as possible and away from noise sources. It is also important to follow proper grounding and earthing practices.
When handling the CHB100W-24S12, it is important to follow proper electrostatic discharge (ESD) precautions to prevent damage to the module. Additionally, the module should be installed and operated in a well-ventilated area, away from flammable materials and explosive environments. It is also important to follow proper safety procedures when working with high-voltage electrical systems.
To troubleshoot common issues with the CHB100W-24S12, it is recommended to follow a systematic approach, starting with visual inspections and checking for signs of physical damage or wear. Next, check the input voltage, output voltage, and current to ensure they are within the specified ranges. If the issue persists, check the thermal management system and ensure that it is functioning properly. Finally, consult the datasheet and application notes for troubleshooting guides and contact Cincon Electronics Corporation's technical support if necessary.
The CHB100W-24S12 is designed to operate in a wide range of environmental conditions, including temperature, humidity, and vibration. However, extreme conditions such as high temperatures, high humidity, and mechanical shock or vibration can affect the performance and reliability of the module. It is important to follow the recommended operating conditions and environmental specifications outlined in the datasheet to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB100W-24S12 Overview

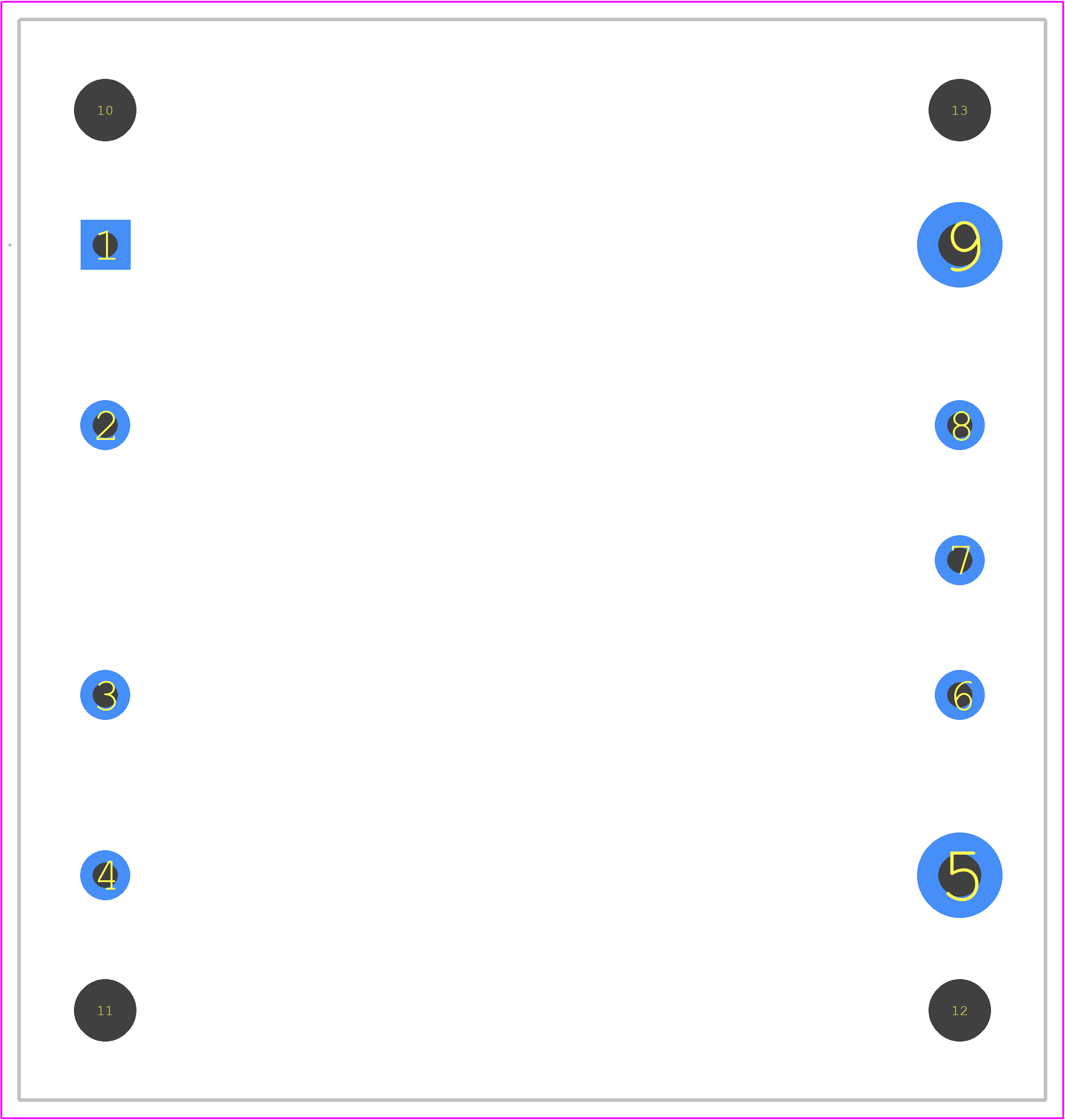

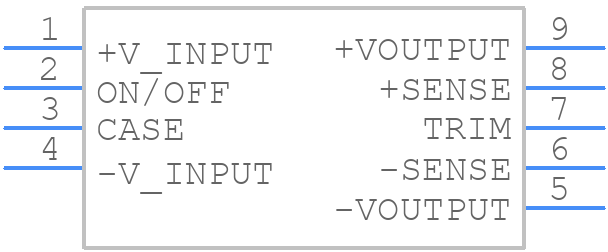

Use the download button to access the CHB100W-24S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB10,
or try a keyword search, such as Power Supply Modules
