- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CHB50-12S25
- Part Number CHB50-12S25
- Manufacturer Cincon
- Pin Count 13
- Part Category Power Supply
- Package Category Other

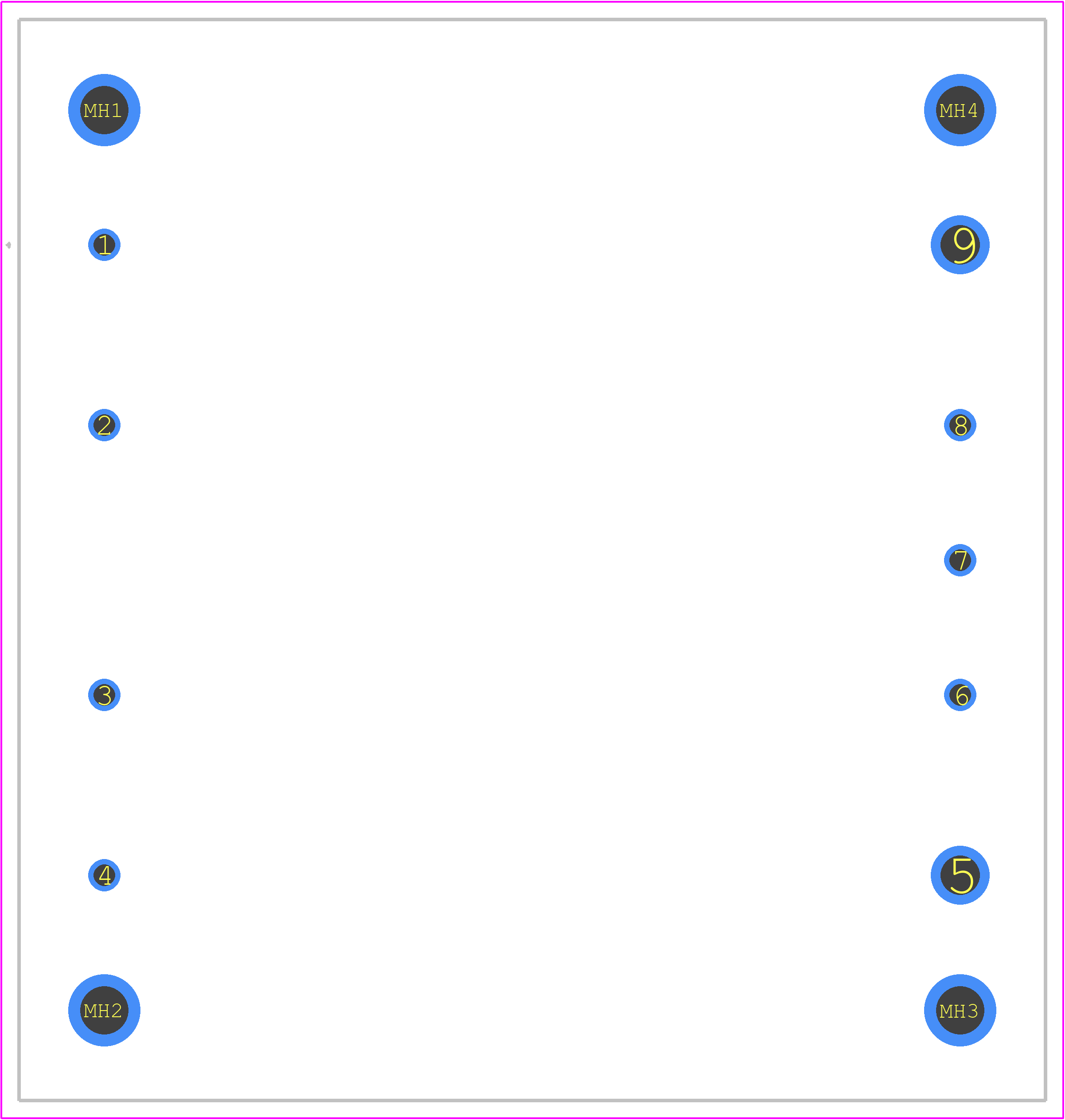

- Footprint Name Other - CHB50-12S25-1
- Released Date Mar 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CHB50-12S25 Details
-
Manufacturer Part Number:
CHB50-12S25
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
Manufacturer:
Cincon Electronics Corporation
-
YTEOL:
2
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Number of Terminals:
9
-
Package Body Material:
METAL
-
Package Equivalence Code:
MODULE,9LEAD,1.9
-
Package Style:
MICROELECTRONIC ASSEMBLY
Trust Checks
Expert Contribution
System Verified
Community Approved
CHB50-12S25 Overview

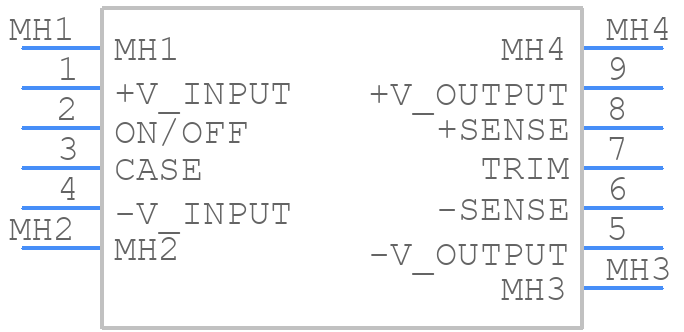

Use the download button to access the CHB50-12S25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB50,
or try a keyword search, such as Power Supply Modules
