CHB75-12S05 - Cincon

Description: Isolated DC/DC Converters - Through Hole DC-DC Converter, Half Brick, 75 Watt, Wide Input Range, Single Output, 9-18VDC Input, 5VDC Output, Negative Logic

Download CHB75-12S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

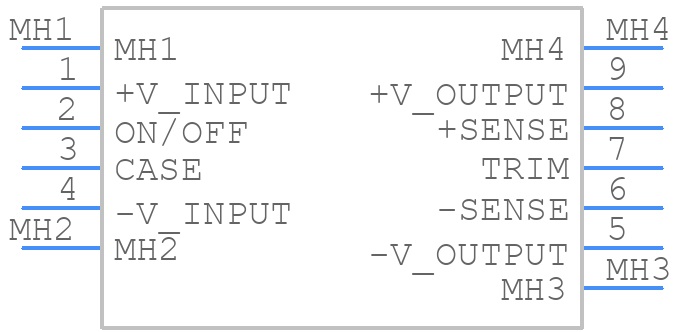

CHB75-12S05 - Cincon - PCB symbol
click to zoom
PCB Footprints

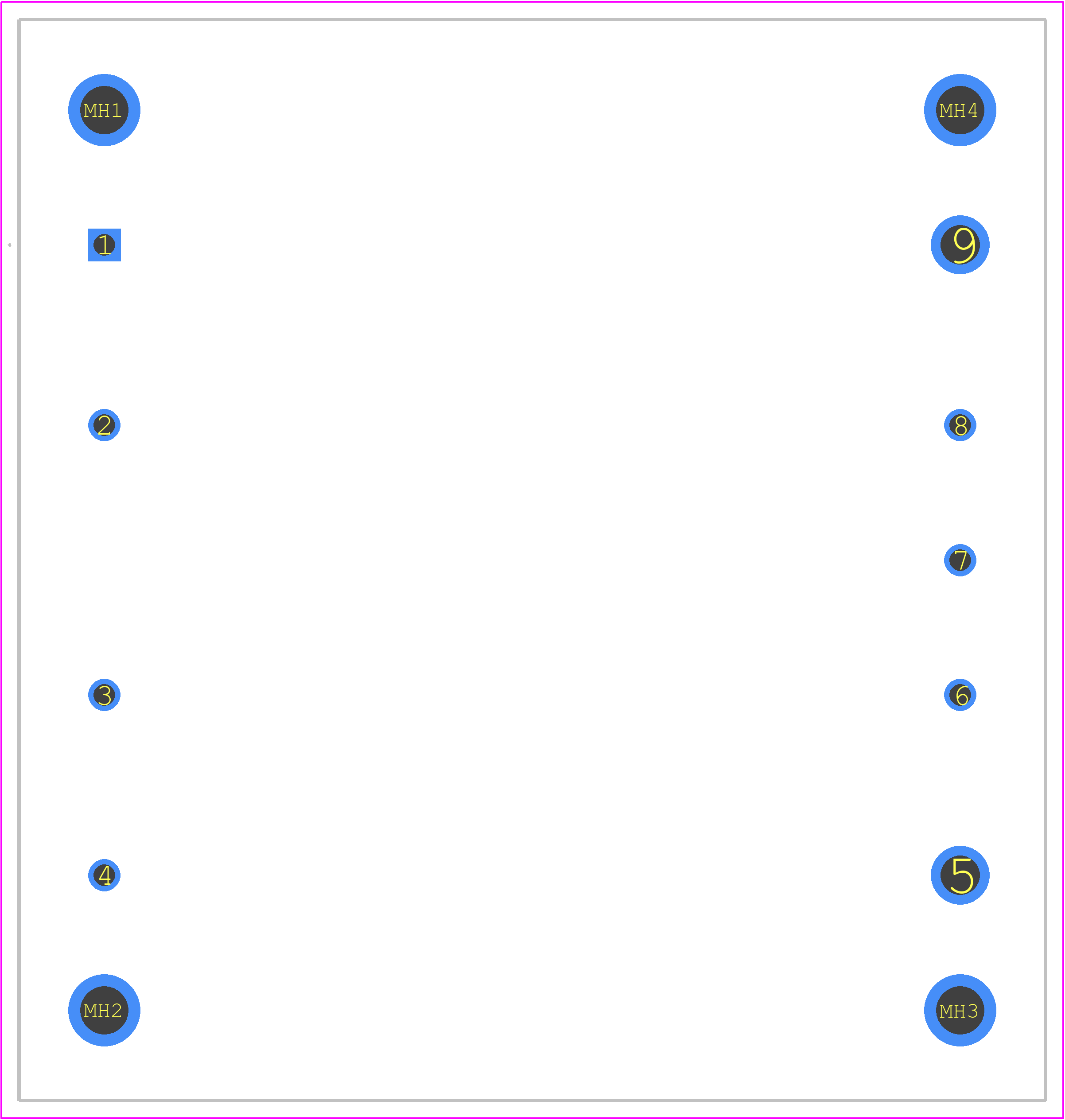

CHB75-12S05 - Cincon PCB footprint - Other - Other - CHB75-12S05-2
click to zoom
3D Models
CHB75-12S05 - Cincon - 3D model - Other - CHB75-12S05-2
click to zoom

CHB75-12S05 Details

  • Manufacturer Part Number:

    CHB75-12S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7.1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P9

  • Length:

    57.9 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.95 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    75 W

  • Trim/Adjustable Output:

    YES

  • Width:

    50.8 mm

CHB75-12S05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a thermal pad or a heat sink, and ensuring good airflow around the component. A minimum of 1 oz copper thickness is recommended for the PCB.
  • To ensure EMC, it is recommended to use a shielded enclosure, keep the DC-DC converter away from sensitive circuits, and use a common-mode choke or ferrite beads on the input and output lines.
  • The maximum capacitance recommended on the output of the CHB75-12S05 is 220uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the CHB75-12S05 is designed to withstand vibrations up to 10G. However, it is recommended to secure the component using a suitable mounting method, such as screwing or adhesive, to prevent damage or dislodging.
  • To troubleshoot issues with the CHB75-12S05, check the input voltage, output voltage, and output current. Verify that the component is properly soldered and that the PCB layout is correct. Consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CHB75-12S05 Overview

Use the download button to access the CHB75-12S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75, or try a keyword search, such as Power Supply Modules
