The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliability and longevity, it's essential to operate the module within the specified temperature range (–40°C to +85°C). Additionally, consider using a heat sink, thermal interface material, and a well-designed thermal management system to keep the module temperature below 80°C. Regular cleaning and maintenance can also help to prevent dust and moisture buildup.
The recommended input capacitors are low-ESR ceramic capacitors with a value of 10uF to 22uF, and the recommended output capacitors are low-ESR electrolytic capacitors with a value of 22uF to 47uF. The capacitor selection should be based on the specific application requirements and the module's output current rating.
To protect the module, consider using overvoltage protection (OVP), undervoltage protection (UVP), and overcurrent protection (OCP) circuits. These can be implemented using external components such as zener diodes, TVS diodes, and current-sensing resistors. Additionally, the module's built-in protection features, such as overcurrent limiting and short-circuit protection, should be enabled and configured according to the application requirements.
The typical efficiency of the CHB75-12S24 module is around 85% to 90% at full load and 25°C ambient temperature. The efficiency may vary depending on the load current, input voltage, and operating temperature. The module's efficiency can be affected by the internal power losses, which increase with temperature and load current. Refer to the datasheet for detailed efficiency curves and thermal derating information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB75-12S24 Overview

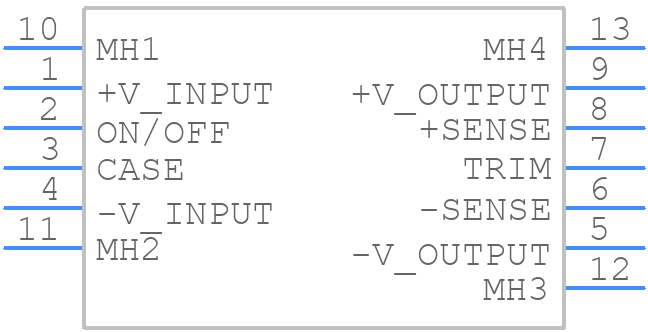

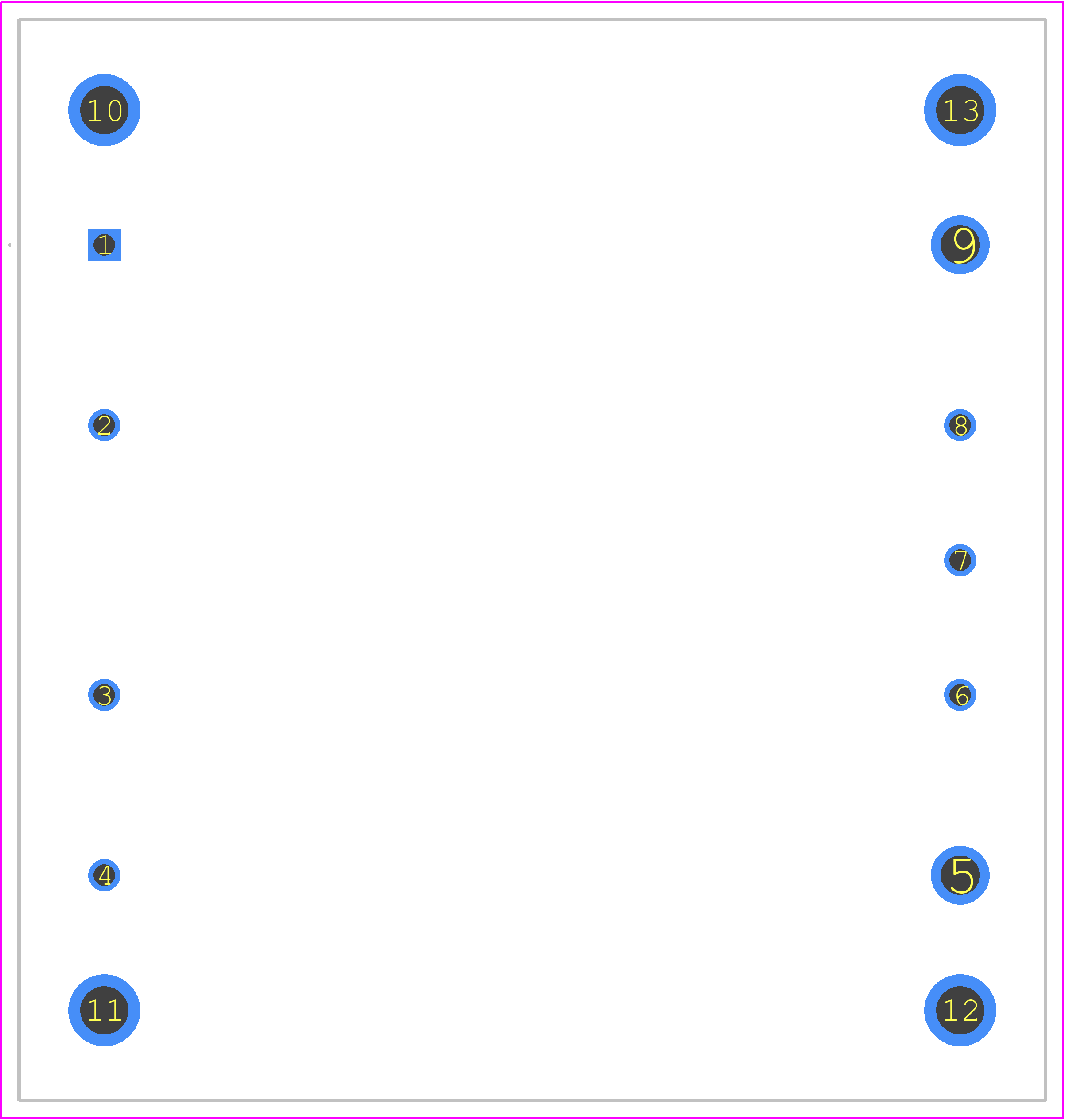

Use the download button to access the CHB75-12S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75,
or try a keyword search, such as Power Supply Modules
