The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a large copper area for heat dissipation is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
To ensure reliable and efficient power transmission, it's essential to follow the recommended layout and routing guidelines, use adequate decoupling capacitors, and ensure that the input and output capacitors are properly selected and placed. Additionally, consider using a shielded cable or a twisted pair wire to minimize EMI and noise.
Operating the converter outside of the recommended input voltage range may affect its performance, efficiency, and reliability. It may lead to reduced output power, increased heat generation, and potentially even damage to the converter. It's essential to ensure that the input voltage remains within the recommended range to guarantee optimal performance and reliability.
To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature. Check for proper PCB layout, thermal management, and component selection. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
When working with the CHB75-24S05, ensure that you follow proper safety precautions to avoid electrical shock, injury, or damage. Use protective equipment such as safety glasses, gloves, and a soldering iron with a temperature limiter. Ensure that the converter is properly grounded and that the input and output voltages are within the recommended range. Consult the datasheet and relevant safety standards for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB75-24S05 Overview

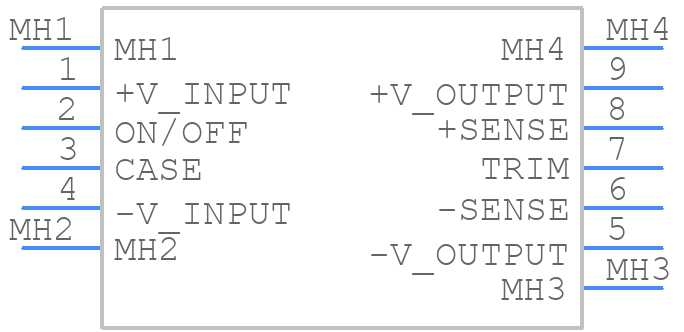

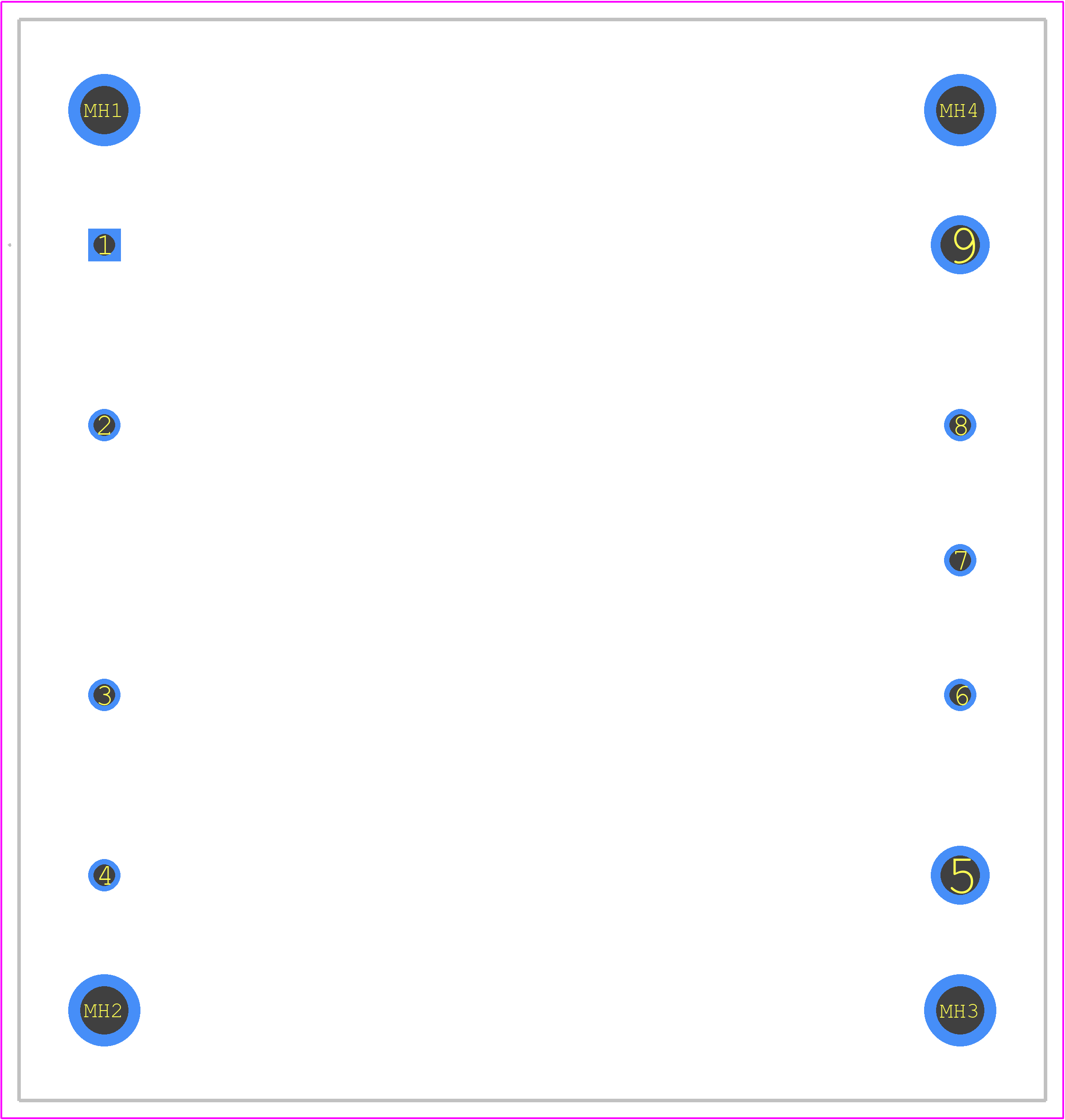

Use the download button to access the CHB75-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75,
or try a keyword search, such as Power Supply Modules
