The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable and efficient power transmission, it is essential to follow proper wiring and cabling practices, such as using twisted pairs, shielding, and proper termination. Additionally, the power supply should be designed to provide a stable output voltage, and the system should be protected against overvoltage, undervoltage, and overcurrent conditions.
The CHB75-48S24 meets various safety certifications, including UL, CE, and RoHS. However, it is essential to ensure that the final application meets the relevant safety standards and regulations, such as IEC 62368-1, IEC 60950-1, and others. Additionally, proper installation, testing, and maintenance are crucial to ensure safe operation.
To troubleshoot common issues, it is essential to follow a systematic approach, starting with visual inspection, checking the input voltage, output voltage, and current, and verifying the proper installation and connection of the module. Additionally, the datasheet and application notes provided by Cincon Electronics Corporation can be consulted for guidance on troubleshooting and fault diagnosis.
The CHB75-48S24 is designed to operate in a wide range of environmental conditions, including temperatures from -40°C to 85°C, humidity up to 95%, and vibration up to 10G. However, it is essential to ensure that the module is operated within the specified operating conditions and that proper derating is applied to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CHB75-48S24 Overview

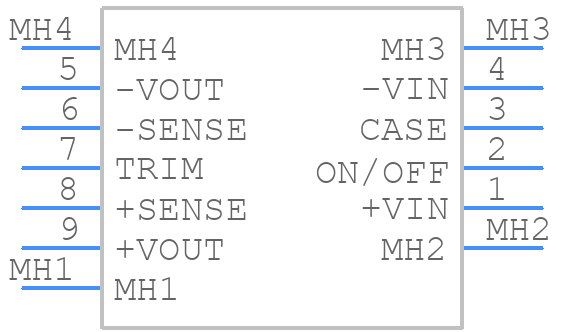

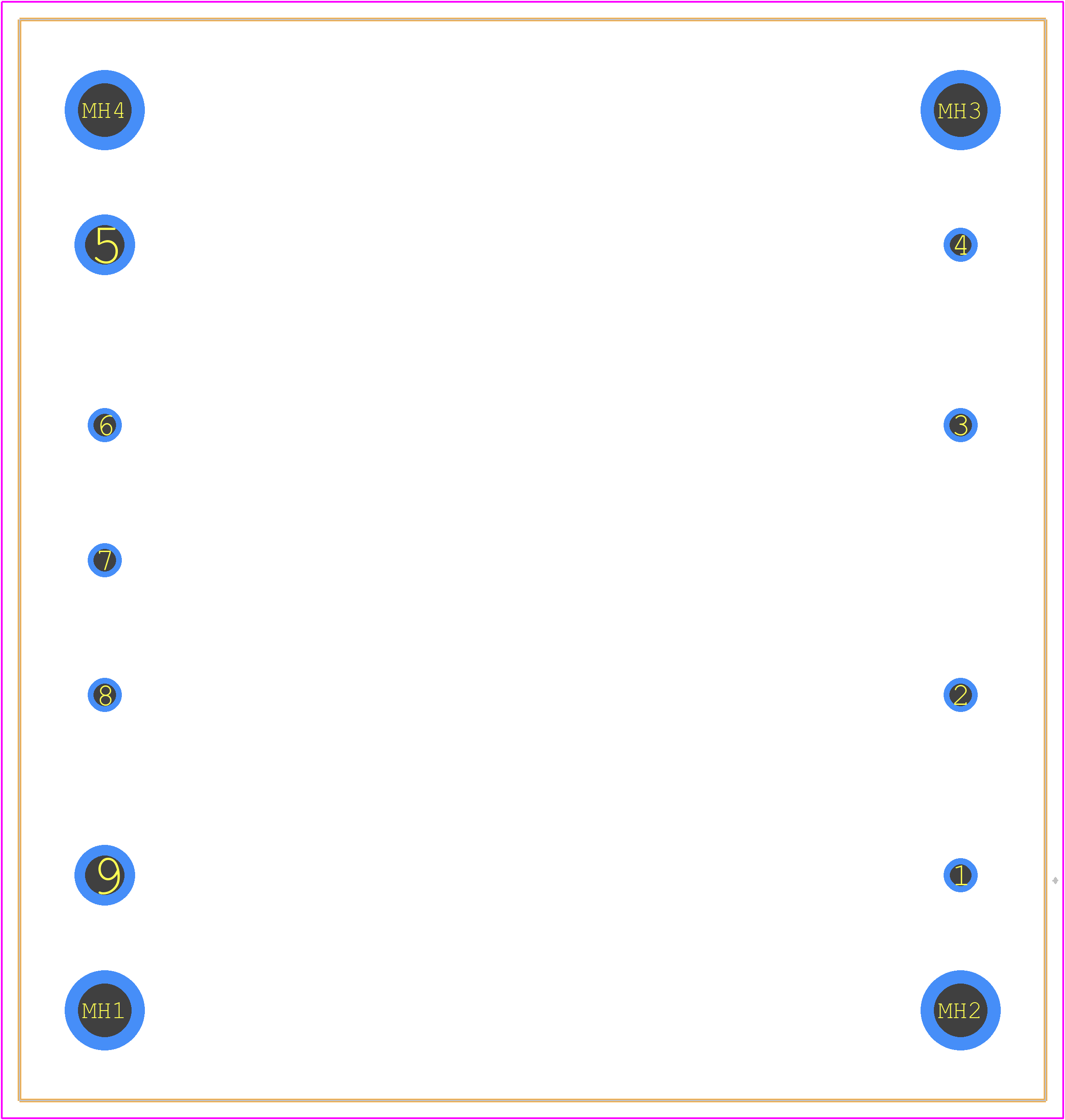

Use the download button to access the CHB75-48S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHB75,
or try a keyword search, such as Power Supply Modules
