CHB75W-24S12 - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, Half Brick, 49.5 to 75 Watt, 4:1 Input Range, Single Output, 9-36VDC Input, 12VDC Output

Download CHB75W-24S12 Model

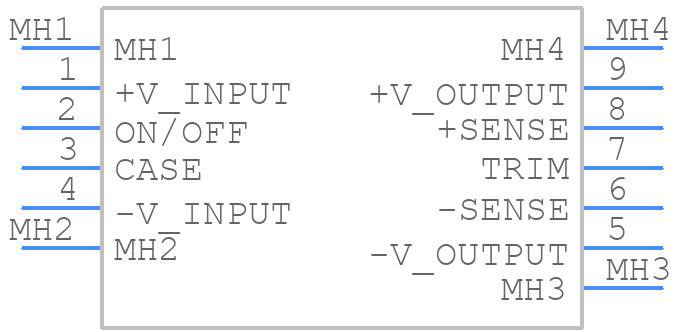

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

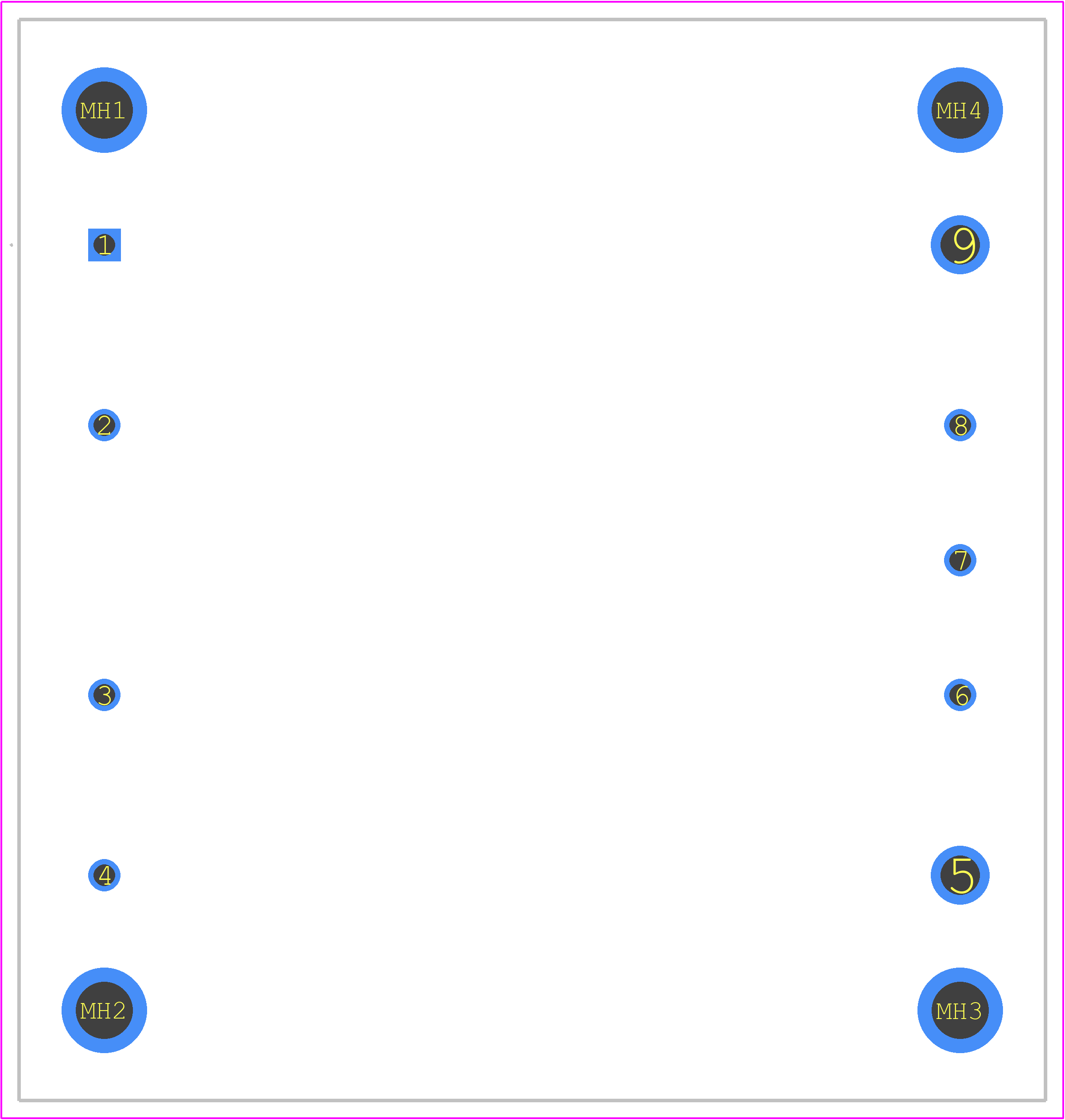

CHB75W-24S12 - Cincon PCB footprint - Other - Other - CHB75W-24S12-1
click to zoom
3D Models
CHB75W-24S12 - Cincon  - 3D model - Other - CHB75W-24S12-1
click to zoom

CHB75W-24S12 Details

  • Manufacturer Part Number:

    CHB75W-24S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1/2 BRICK PACKAGE -9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, IEC, UL

  • Efficiency (Main Output):

    83%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDFM-P9

  • Length:

    61 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6.25 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Protections:

    SHORT CIRCUIT; OUTPUT OVER VOLTAGE

  • Ripple Voltage (Main Out):

    0.06 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    75 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.005 s

  • Width:

    57.9 mm

CHB75W-24S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid ground plane, and keeping the input and output capacitors close to the converter. Additionally, a thermal relief pattern on the PCB can help to dissipate heat more efficiently.
  • To ensure reliable start-up of the converter, make sure to follow the recommended input voltage sequencing, provide a sufficient input voltage hold-up time, and ensure that the input voltage is within the specified range. Additionally, a soft-start circuit can be used to reduce inrush current and prevent voltage drops during start-up.
  • The CHB75W-24S12 has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. A common-mode choke and X-capacitors can be added to the input and output lines to further reduce EMI emissions.
  • The CHB75W-24S12 is designed for high-reliability applications, but it is essential to follow the recommended design guidelines and testing procedures to ensure compliance with safety standards such as IEC 60601 or MIL-STD-810. Additionally, a thorough risk assessment and failure mode analysis should be performed to identify and mitigate potential failure modes.
  • To troubleshoot issues with the converter, start by verifying the input voltage, output voltage, and current levels. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to inspect the output voltage waveform for any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
