CHB75W-24S28 - Cincon

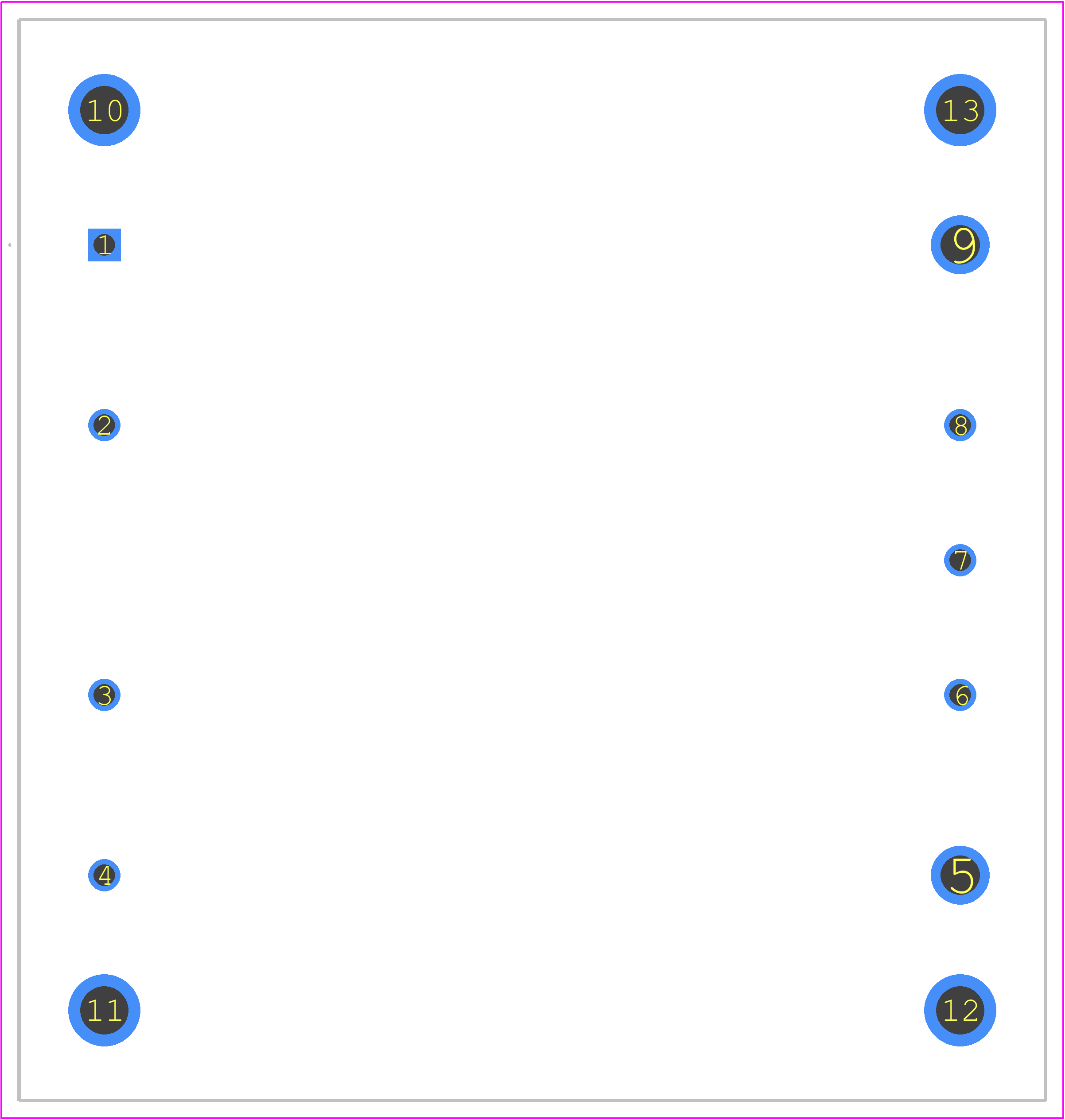

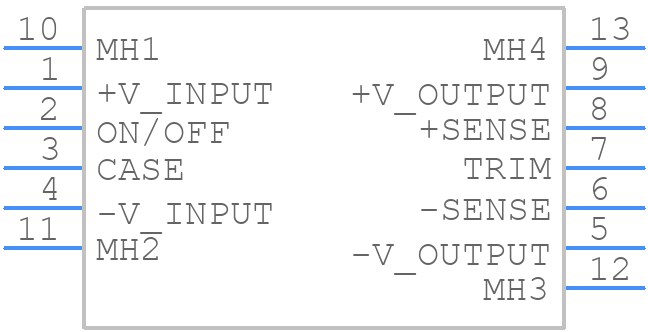

CHB75W-24S28 Details

• Manufacturer Part Number:

  CHB75W-24S28

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  1/2 BRICK PACKAGE -9

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  7.8

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, IEC, UL

• Efficiency (Main Output):

  84%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-MDFM-P9

• Length:

  61 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.67 A

• Output Voltage-Max:

  30.8 V

• Output Voltage-Min:

  25.2 V

• Output Voltage-Nom:

  28 V

• Package Body Material:

  METAL

• Package Code:

  DFM

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Protections:

  SHORT CIRCUIT; OUTPUT OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.1 Vrms

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  74.76 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.005 s

• Width:

  57.9 mm
