CHS604805 - Cosel

Description: Cosel PCB Mount 60W Isolated DC-DC Converter, Vin 36 → 76 V dc, I/O isolation 1 kV ac, 2.25 kV dc, 500 V dc

Download CHS604805 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

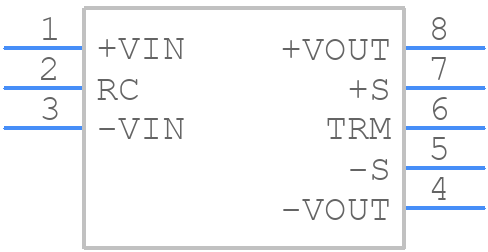

Symbol
CHS604805 - Cosel - PCB symbol
click to zoom

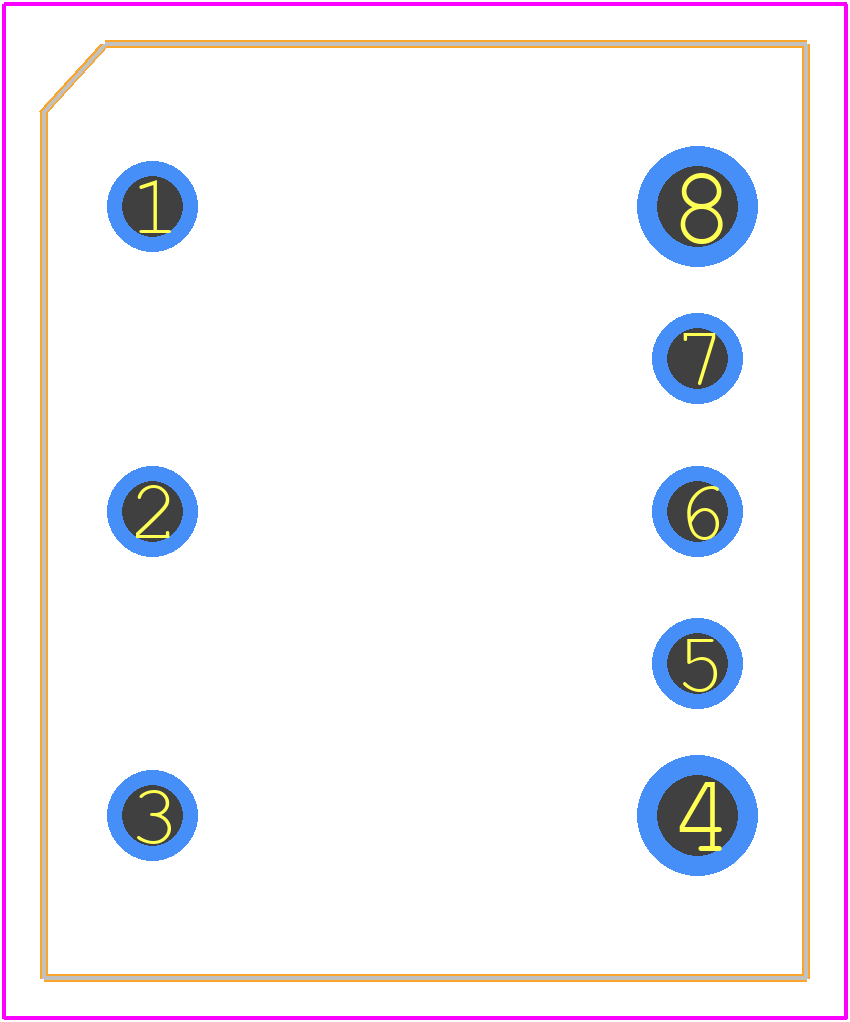

PCB Footprints
CHS604805 - Cosel PCB footprint - Other - Other - CHS604805-3
click to zoom
3D Models
CHS604805 - Cosel - 3D model - Other - CHS604805-3
click to zoom

CHS604805 Details

  • Manufacturer Part Number:

    CHS604805

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    23.36 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    60 W

  • Trim/Adjustable Output:

    YES

  • Width:

    19.05 mm

CHS604805 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area underneath the module to dissipate heat effectively. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-vibration environments, Cosel recommends securing the module using screws or adhesive, and ensuring that the PCB is properly mounted and secured to the chassis. Additionally, using a conformal coating can help protect the module from vibration-induced damage.
  • The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the CHS604805 can be used in a redundant configuration to achieve high reliability and availability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
  • Cosel recommends using a fuse with a rating of 5A or less to protect the module from input overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CHS604805 Overview

Use the download button to access the CHS604805 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CHS60, or try a keyword search, such as Power Supply Modules
