CHS604812 - Cosel

Description: Cosel PCB Mount 72W Isolated DC-DC Converter, Vin 36 → 76 V dc, I/O isolation 1 kV ac, 2.25 kV dc, 500 V dc

Download CHS604812 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

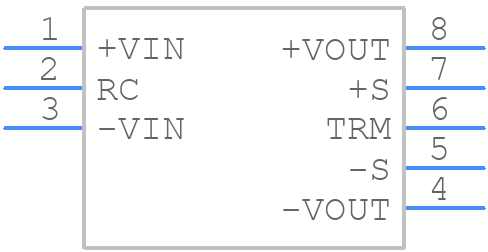

CHS604812 - Cosel - PCB symbol
click to zoom
PCB Footprints

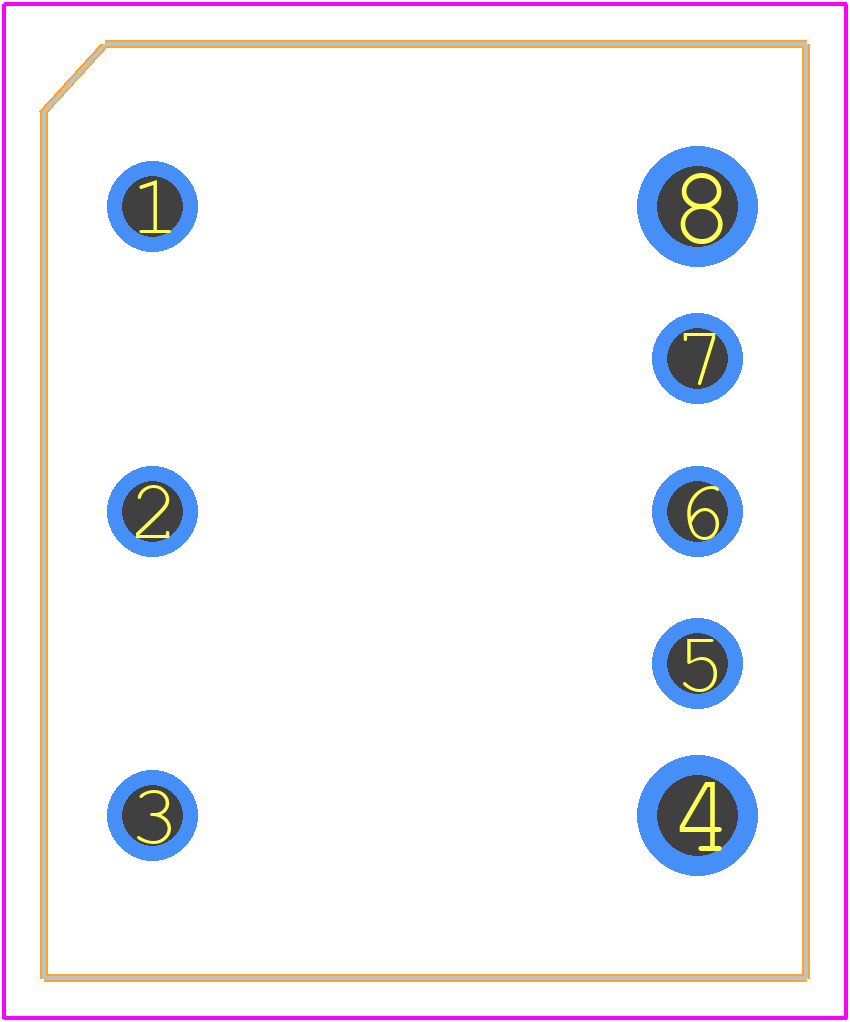

CHS604812 - Cosel PCB footprint - Other - Other - CHS604805-3
click to zoom
3D Models
CHS604812 - Cosel - 3D model - Other - CHS604805-3
click to zoom

CHS604812 Details

  • Manufacturer Part Number:

    CHS604812

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    23.36 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    9.6 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    72 W

  • Trim/Adjustable Output:

    YES

  • Width:

    19.05 mm

CHS604812 Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 inch x 1 inch of copper area is recommended for heat sinking.
  • Cosel recommends following the CISPR 11 and CISPR 22 standards for EMC compliance. Additionally, ensure proper grounding, shielding, and filtering to minimize electromagnetic interference.
  • Cosel recommends a maximum capacitance of 220uF for the output filter capacitors to ensure stability and prevent oscillation.
  • Yes, the CHS604812 can be used in a redundant configuration. However, it's essential to ensure proper synchronization and control of the redundant modules to prevent instability and ensure seamless switchover.
  • Cosel recommends a fuse rating of 5A to 10A, depending on the specific application and input voltage, to protect the module from overcurrent conditions.
