CK05BX104K - Kyocera AVX

Description: Capacitor, Ceramic;100000pF;Gen. Purp;Radial;50WVDC;+/-10%;+15, -25%;0.09In.T;0.

Download CK05BX104K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CK05BX104K - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

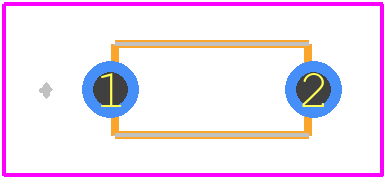

CK05BX104K - Kyocera AVX PCB footprint - Other - Other - CK05BX104K-2
click to zoom
3D Models
CK05BX104K - Kyocera AVX - 3D model - Other - CK05BX104K-2
click to zoom

CK05BX104K Details

  • Manufacturer Part Number:

    CK05BX104K

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    4

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4.83 mm

  • JESD-609 Code:

    e0

  • Length:

    4.83 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    MIL-C-11015

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    BX

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    TIN LEAD

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    2.29 mm

CK05BX104K Frequently Asked Questions (FAQs)

  • The recommended land pattern for CK05BX104K is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • CK05BX104K is a moisture-sensitive device. It's recommended to store it in a dry environment (less than 30% RH) and to follow the recommended baking procedure before reflow soldering.
  • The maximum reflow temperature for CK05BX104K is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds.
  • CK05BX104K is designed to withstand moderate vibration levels. However, it's recommended to perform additional testing and validation to ensure the component's reliability in high-vibration environments.
  • To ensure reliability in high-temperature applications, it's recommended to follow the recommended derating guidelines, ensure proper thermal management, and perform accelerated life testing to validate the component's performance.
